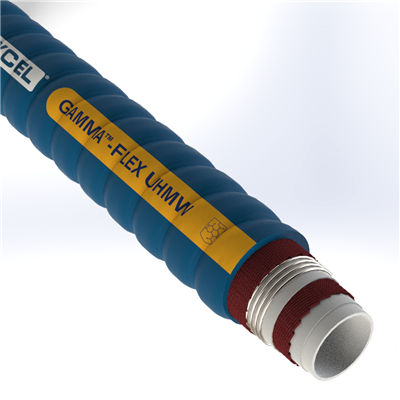

GUH20C1-1.25-Blue by Texcel | GAMMA™-FLEX UHMW Series | Ultra-High Molecular Weight Polyethylene Chemical Hose | 1" Hose ID | 200 PSI | 29 in/Hg Vacuum Rated | Blue

$16.89 - $2,814.00

$16.89

$15.01

$15.01 - $2,501.33

$15.01

GAMMA™ by Texcel
FLEX UHMW Series | Ultra-High Molecular Weight Polyethylene Chemical Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Package Quantity: 200 Units

Quantity

Specifications for Variant SKU: GUH20C1-1.25-200 Texcel \| 200 \|
Brand:	GAMMA™
Series:	GAMMA™-FLEX UHMW Series
Hose Color(s):	Blue
Internal Diameter:	1.25in
Outer Diameter:	1.70in
Tubing Construction:	Polyethylene
Cover Construction:	EPDM

Technical Data:
Description:	A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.	Tube:	Clear, ultra-high molecular weight polyethylene
Cover:	Blue or green*, EPDM (corrugated)	Reinforcement:	High tensile tire cord plies; dual helix wire
Safety Factor:	4:1	Temperature:	-40°F to +250°F (intermittent)
Branding:	TEXCEL® GAMMA™-FLEX UHMW - CHEMICAL SUCTION AND DISCHARGE HOSE 200 PSI W.P. UHMW TUBE	Safety Note :	Temperature rating depends on specific chemical conveyed and concentration
Features:	Exceptional flexibility

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./ft
GUH20C1-1.0-BLUE	1"	1-28/64"	200 psi	29	2.5"	0.57 lbs
GUH20C1-1.25-BLUE	1-1/4"	1-45/64"	200 psi	29	2.75"	0.62 lbs
GUH20C1-1.5-BLUE	1-1/2"	1-61/64"	200 psi	29	3"	0.81 lbs
GUH20C1-2.0-BLUE	2"	2-31/64"	200 psi	29	4"	1.11 lbs
GUH20C1-2.5-BLUE	2-1/2"	2-63/64"	200 psi	29	5"	1.40 lbs
GUH20C1-3.0-BLUE	3"	3-35/64"	200 psi	29	6"	1.77 lbs
GUH20C1-4.0-BLUE	4"	4-36/64"	200 psi	29	8"	2.83 lbs
GUH20C1-6.0-BLUE	6"	6-53/64"	200 psi	29	20"	5.50 lbs
