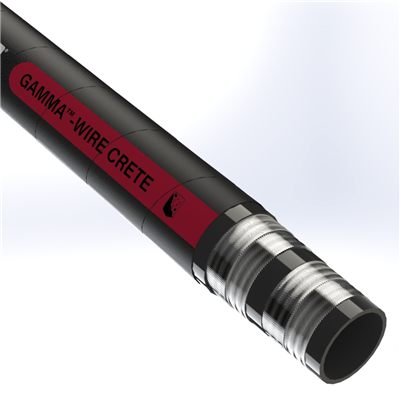

GWC12S1-2.0 by Texcel | GAMMA™-WIRE CRETE Series | Wire Concrete Placement Hose | 2" Hose ID | 1450 PSI | Black

GWC12S1-2.0 by Texcel | GAMMA™-WIRE CRETE Series | Wire Concrete Placement Hose | 2" Hose ID | 1450 PSI | Black

$29.72 - $2,476.50
$29.72
$26.42
$26.42 - $2,201.33
$26.42

GAMMA™ by Texcel
WIRE CRETE Series | Wire Concrete Placement Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GWC12S1-2.0-100N Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-WIRE CRETE Series
Hose Color(s): Black
Internal Diameter: 2in
Outer Diameter: 2.75in
Tubing Construction: Natural Rubber/SBR Blend
Cover Construction: SBR
Technical Data:
Description: A heavy-duty hose designed to handle the most abrasive applications and weather conditions. Suitable for handling wet concrete in areas where flex is critical. Ideal for use on high pressure concrete pumps or boom trucks where a tough, durable hose is required for high pressure concrete pumping and placing applications. Tube: Black, wear-resistant, GUM/SBR blend
Cover: Black, SBR, cut and gouge-resistant Reinforcement: Multiple steel wire plies
Safety Factor: 2:1 (per ASME standards) Temperature: -40°F to +200°F
Branding: TEXCEL GAMMA™ SERIES CONCRETE PLACEMENT HOSE – WIRE XX" 1450 PSI (100 BAR) WP XX LBS/FT (F.W.C.) MEETS OR EXCEEDS ASME B30.27-2009 Features: Meets ASME B3.27-2009 specifications
Part Number Hose ID Hose OD Working Pressure (psi/bar) Burst Pressure (psi/bar) Bend Radius Lbs./Ft.
GWC12S1-2.0 2" 2-48/64" 1450/100 2900/200 12" 1.86 lbs
GWC12S1-2.5 2-1/2" 3-24/64" 1450/100 2900/200 16" 2.67 lbs
GWC12S1-3.0 3" 3-60/64" 1450/100 2900/200 18" 3.37 lbs
GWC12S1-4.0 4" 5-4/64" 1450/100 2900/200 24" 5.31 lbs
GWC12S1-5.0 5" 6-8/64" 1450/100 2900/200 30" 6.57 lbs
