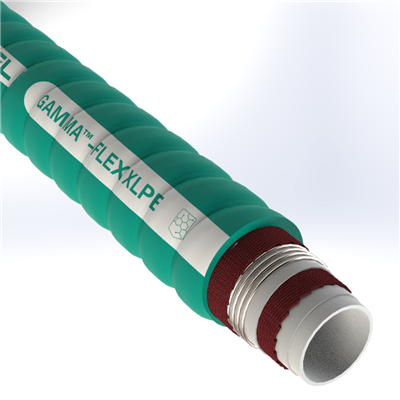

GXL20F1-1.5 by Texcel | GAMMA™-FLEX XLPE Series | Cross-Linked Polyethylene Chemical Hose | 1-1/2" Hose ID | 200 PSI | Green

GXL20F1-1.5 by Texcel | GAMMA™-FLEX XLPE Series | Cross-Linked Polyethylene Chemical Hose | 1-1/2" Hose ID | 200 PSI | Green

$18.90 - $3,150.00
$18.90
$16.80
$16.80 - $2,800.00
$16.80

GAMMA™ by Texcel
FLEX XLPE Series | Cross-Linked Polyethylene Chemical Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Package Quantity: 100 Units

Specifications for Variant SKU: GXL20F1-1.5-100 Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-FLEX XLPE Series
Hose Color(s): Green
Internal Diameter: 1.50in
Outer Diameter: 1.97in
Tubing Construction: Polyethylene
Cover Construction: EPDM
Technical Data:
Description: Designed to handle a wide range of chemicals, solvents and corrosive liquids in both pressure and suction service. Tube: Clear, cross-linked polyethylene
Cover: Green, EPDM (corrugated) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -40°F to +212°F
Branding: TEXCEL® GAMMA™-FLEX XLPE - CHEMICAL SUCTIOn AND DISCHARGE HOSE 200 PSI W.P. XLPE TUBE Safety Note : Temperature rating depends on specific chemical conveyed and concentration
Features: Exceptional flexibility
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
GXL20F1-1.0 1" 1-30/64" 200 psi 29 2.5" 0.56 lbs
GXL20F1-1.5 1-1/2" 1-62/64" 200 psi 29 3" 0.80 lbs
GXL20F1-2.0 2" 2-32/64" 200 psi 29 4" 1.15 lbs
GXL20F1-2.5 2-1/2" 3" 200 psi 29 5" 1.41 lbs
GXL20F1-3.0 3" 3-35/64" 200 psi 29 6" 1.89 lbs
GXL20F1-4.0 4" 4-39/64" 200 psi 29 8" 2.69 lbs
