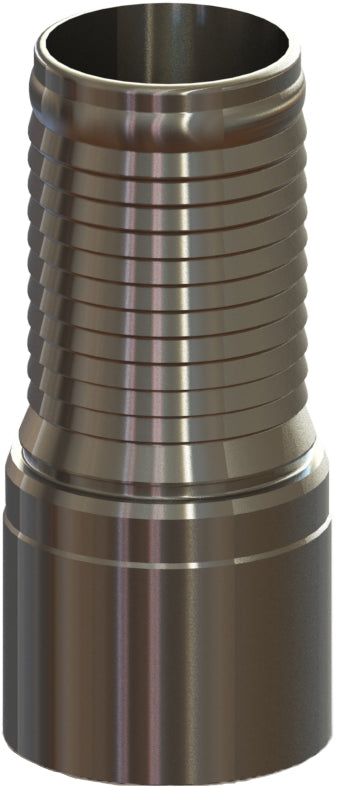

HAS-12C SQ by Campbell Fittings | Square Cut End | 3" Square Cut x 3" Hose Barb | Plated Steel

Name: HAS-12C SQ by Campbell Fittings | Square Cut End | 3" Square Cut x 3" Hose Barb | Plated Steel
Brand: Campbell Fittings
SKU: HAS-12C SQ Campbell Fittings
Price: 41.31 USD
Availability: InStock

$36.62 - $36.62

$36.62

$41.31

$41.31 - $41.31

$41.31

by Campbell
Crimpnology Nipples:HAS SQ Square Cut End

Quantity

Specifications for Variant SKU: HAS-12C SQ Campbell Fittings
Series:	HAS SQ Series
Shape (Orientation):	Straight
Ends Configuration:	3in Weld End, 3in Hose Barb
Material(s):	Plated Steel

Recommended Use:	Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:	Interlocking ferrules
Features and Benefits:	Designed for use with Campbell Interlocking Ferrules Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible Interlock groove on fitting locks ferrule into place for the ultimate in holding power Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose. Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:	Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications Long Shank Crimpnology nipples provide excellent sealing and retention for high-pressure application (See ratings chart)


Part Number	Hose Size
HAS-6C SQ	1-1/2"
HAS-8C SQ	2"
HAS-10C SQ	2-1/2"
HAS-12C SQ	3"
HAS-16C SQ	4"
HAS-24C SQ	6"
HAS-32C SQ	8"
