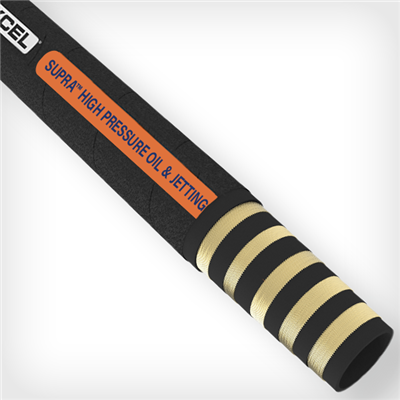

HPOJ-6.0 by Texcel | SUPRA™ - HPOJ Series | High Pressure Oil & Jetting Hose | 6" Hose ID | 1,600 PSI | Black

HPOJ-6.0 by Texcel | SUPRA™ - HPOJ Series | High Pressure Oil & Jetting Hose | 6" Hose ID | 1,600 PSI | Black

$198.87 - $16,572.00
$198.87
$176.77
$176.77 - $14,730.67
$176.77

SUPRA™ by Texcel
HPOJ Series | High Pressure Oil & Jetting Hose
Specifications for Variant SKU: HPOJ-6.0-100 Texcel | 100 |
Series: SUPRA™ - HPOJ Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 7.09in
Tubing Construction: Nitrile
Cover Construction: Chloroprene Rubber
Technical Data:
Tube: Black, NBR (50% Aromatics (ORS)) Cover: Black, CR, extremely high abrasion and weather resistant
Reinforcement: Multiple steel wire plies Maximum Length: 100 ft.
Operating Temperature: -20 F to +194 F, up to 212 F for oil use only Branding: SUPRA™ - HIGH PRESSURE OIL & JETTING HOSE
Couplings: Use GMCO™ 9000 SERIES Couplings
Part Number Hose ID Hose OD Working Pressure (psi) Test Pressure (psi) Safety Factor Bend Radius Lbs./Ft.
HPOJ-4.0 4" 5-5/64" 1,600 psi 4,000 psi 2.5:1 20" 6.6 lbs/ft
HPOJ-6.0 6" 7-9/64" 1,600 psi 4,000 psi 2.5:1 29" 10.9 lbs/ft
