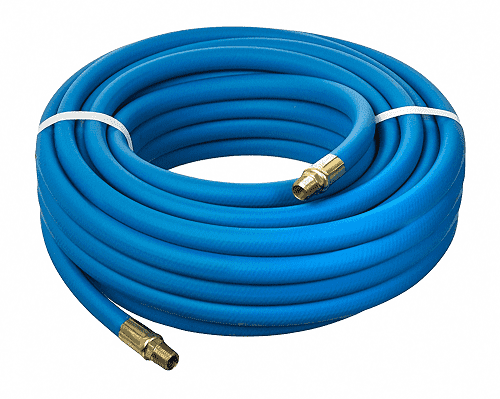

HS1136D-08X100 Kuri-Tec by Kuriyama | POLYAIR HS1136 Series | Multi-Purpose Air Hose Assembly | Blue | 1/2" ID | .813" OD | 100ft Length

HS1136D-08X100 Kuri-Tec by Kuriyama | POLYAIR HS1136 Series | Multi-Purpose Air Hose Assembly | Blue | 1/2" ID | .813" OD | 100ft Length

Save $39.04 Save $39.04
$136.64
$136.64 - $136.64
$136.64
$97.60
$97.60 - $97.60
$97.60

Kuriyama Kuri Tec® POLYAIR HS1136 Series Multi-Purpose Air Hose Assemblies - Blue

Specifications for Variant SKU: HS1136D-08X100 Kuriyama
Brand: Kuri Tec, POLYAIR
Series: HS1136 Series
Hose Color(s): Blue
Internal Diameter: 0.50in
Outer Diameter: 0.813in
Tubing Construction: PVC
Cover Construction: PVC
Ends Configuration: 1/2in Male NPT, 1/2in Male NPT, Some Ends Match

SPECIFICATIONS

Application: Multi-Purpose Air Hose SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Assemblies are shrink wrapped and labeled
  • Note: Hose assemblies are furnished with the following fittings:
    • 1/4" ID - 1/4" X 1/4"M NPT
    • 5/16" ID - 5/16" X 1/4"M NPT
    • 3/8" ID - 3/8" X 1/4"M NPT
    • 1/2" ID - 1/2" X 1/2"M NPT
    • 5/8" ID - 5/8" X 3/4"M NPT
    • 3/4" ID - 3/4" X 3/4"M NPT
    • 1" ID - 1" X 1"M NPT
Part Number Nominal ID Nominal OD Standard Lengths Approx Weight per Pkg
(in.) (in.) Coil
HS1136-04X100 1/4" .500" 100 ft. 8.8 lbs.
HS1136-04X25 1/4" .500" 25 ft. 2.2 lbs.
HS1136-04X50 1/4" .500" 50 ft. 4.4 lbs.
HS1136-06X100 3/8" .625" 100 ft. 11.6 lbs.
HS1136-06X25 3/8" .625" 25 ft. 2.9 lbs.
HS1136-06X50 3/8" .625" 50 ft. 5.8 lbs.
HS1136D-08X100 1/2" .813" 100 ft. 18.0 lbs.
HS1136D-08X25 1/2" .813" 25 ft. 4.5 lbs.
HS1136D-08X50 1/2" .813" 50 ft. 9.0 lbs.
HS1136E-12X100 3/4" 1.125" 100 ft. 30.0 lbs.
HS1136E-12X25 3/4" 1.125" 25 ft. 7.5 lbs.
HS1136E-12X50 3/4" 1.125" 50 ft. 15.0 lbs.
HS1136F-16X100 1" 1.406" 100 ft. 41.0 lbs.
HS1136F-16X25 1" 1.406" 25 ft. 10.3 lbs.
HS1136F-16X50 1" 1.406" 50 ft. 20.5 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
