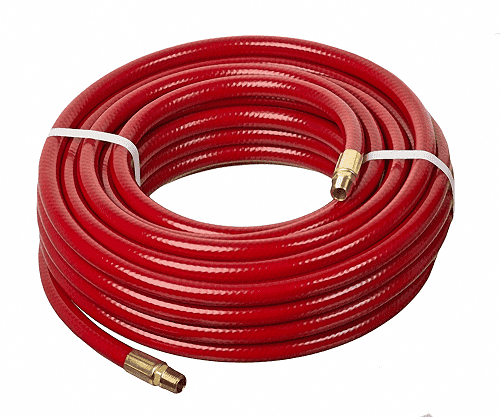

HS1184-06X50 Kuri-Tec by Kuriyama | HS1184 Series | Utility-Grade Air Tool Hose Assembly | Red | 3/8" ID | .600" OD | PVC | 50ft Length

HS1184-06X50 Kuri-Tec by Kuriyama | HS1184 Series | Utility-Grade Air Tool Hose Assembly | Red | 3/8" ID | .600" OD | PVC | 50ft Length

Save $2.26 Save $2.26
$22.72
$22.72 - $22.72
$22.72
$20.46
$20.46 - $20.46
$20.46

Kuriyama Kuri Tec® HS1184 Series Utility-Grade PVC Air Tool Hose Assemblies - Red

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HS1184-06X50 Kuriyama
Brand: Kuri Tec
Series: HS1184 Series
Hose Color(s): Red
Internal Diameter: 0.375in
Outer Diameter: 0.60in
Tubing Construction: PVC
Ends Configuration: 3/8in Male NPT, 3/8in Male NPT, Some Ends Match

SPECIFICATIONS

Application: Air Tools SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: N/A Cover: N/A
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Note: Hose Assembly are furnished with the following fittings:
    • 1/4" ID - 1/4" X 1/4"M NPT
    • 3/8" ID - 3/8" X 1/4"M NPT
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI)
HS1184-04X100 1/4" 6.5mm .475" 12.1mm 300 PSI 100 ft. 7.4 lbs.
HS1184-04X25 1/4" 6.5mm .475" 12.1mm 300 PSI 25 ft. 1.9 lbs.
HS1184-04X50 1/4" 6.5mm .475" 12.1mm 300 PSI 50 ft. 3.7 lbs.
HS1184-06X100 3/8" 9.5mm .600" 15.2mm 300 PSI 100 ft. 10.2 lbs.
HS1184-06X25 3/8" 9.5mm .600" 15.2mm 300 PSI 25 ft. 2.6 lbs.
HS1184-06X50 3/8" 9.5mm .600" 15.2mm 300 PSI 50 ft. 5.1 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
