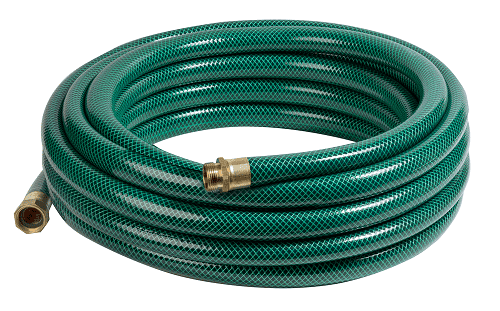

HS1317-12X50 Kuri-Tec by Kuriyama | HS1317 Series | Heavy Duty Reinforced Green Water Hose Assembly | Green | 3/4" ID | 1.025" OD | PVC | 50ft Length

Save $10.64

$106.52

$106.52 - $106.52

$106.52

$95.88

$95.88 - $95.88

$95.88

Kuriyama Kuri Tec® HS1317 Series Heavy Duty Reinforced Green PVC Water Hose Assemblies

Quantity

Specifications for Variant SKU: HS1317-12X50 Kuriyama
Brand:	Kuri Tec
Series:	HS1317 Series
Hose Color(s):	Green
Internal Diameter:	0.75in
Outer Diameter:	1.025in
Tubing Construction:	PVC
Ends Configuration:	3/4in Male NPT, 3/4in Male NPT, Some Ends Match

SPECIFICATIONS

Other Features:
Application:	Water Hose, Garden Hose	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	+25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
3/4" Hose assemblies are furnished with heavy-duty Brass GHT, 3/4" M x F fittings. 1" hose assemblies are furnished with 1" NPS pipe thread fittings.

Part Number	Nominal ID		Nominal OD		Working Pressure		Assembled Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	(ft.)
HS1317-12X100	3/4"	19.1mm	1.025"	26.0mm	125 PSI	50 PSI	100 ft.	22 lbs.
HS1317-12X50	3/4"	19.1mm	1.025"	26.0mm	125 PSI	50 PSI	50 ft.	11 lbs.
HS1317-16X100	1"	25.4mm	1.297"	32.9mm	125 PSI	50 PSI	100 ft.	30 lbs.
HS1317-16X50	1"	25.4mm	1.297"	32.9mm	125 PSI	50 PSI	50 ft.	15 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
