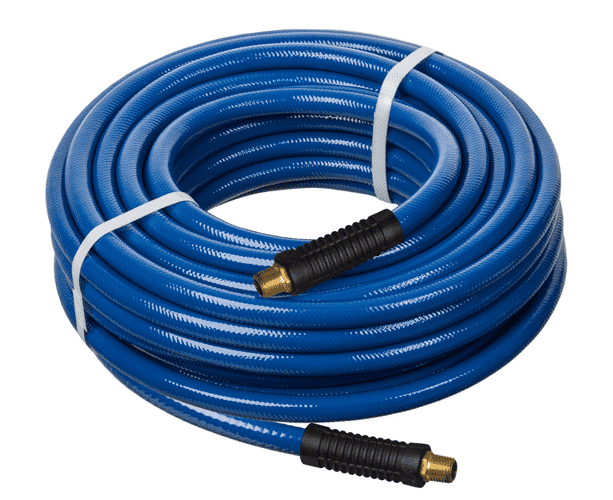

HS5096-04X50 Kuri-Tec by Kuriyama | PNEU-THANE HS5096 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly | Blue | 1/4" ID | .395" OD | 50ft Length

Save $24.45

$85.57

$85.57 - $85.57

$85.57

$61.12

$61.12 - $61.12

$61.12

Kuriyama Kuri Tec PNEU-THANE® PNEU-THANE HS5096 Series Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly - Blue

Specifications for Variant SKU: HS5096-04X50 Kuriyama
Brand:	Kuri Tec, PNEU-THANE
Series:	HS5096 Series
Hose Color(s):	Blue
Internal Diameter:	0.25in
Outer Diameter:	0.395in
Tubing Construction:	Polyurethane
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match

SPECIFICATIONS

Other Features:
Application:	Pneumatic Air Tool	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
With Rubber Bend Restrictors Hose assemblies are furnished with the following fittings: 1/4" ID - 1/4" X 1/4"M NPT, 3/8" ID - 3/8" X 1/4"M NPT.

Part Number	Nominal ID		Nominal OD		Working Pressure		Assembled Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)
HS5096-04X100	1/4"	6.5mm	.395"	10.0mm	250 PSI	200 PSI	100 ft.	4 lbs.
HS5096-04X25	1/4"	6.5mm	.395"	10.0mm	250 PSI	200 PSI	25 ft.	1 lbs.
HS5096-04X50	1/4"	6.5mm	.395"	10.0mm	250 PSI	200 PSI	50 ft.	2 lbs.
HS5096-06X100	3/8"	9.5mm	.560"	14.2mm	250 PSI	200 PSI	100 ft.	6 lbs.
HS5096-06X25	3/8"	9.5mm	.560"	14.2mm	250 PSI	200 PSI	25 ft.	1.5 lbs.
HS5096-06X50	3/8"	9.5mm	.560"	14.2mm	250 PSI	200 PSI	50 ft.	3 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
