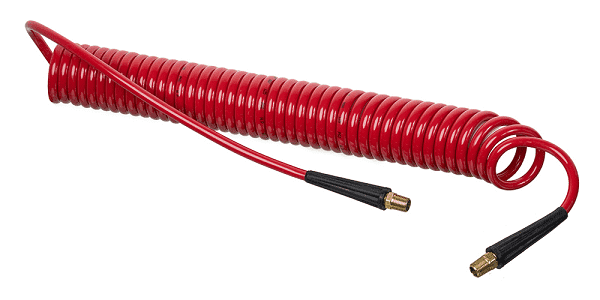

HSC2844-04X10 Kuri-Tec by Kuriyama | HSC2844 Series | Self-Store Coiled Tubing Assemblies for Air Tool Service | 1/4" ID | .375" OD | 1/4" x 1/4" Male NPT Fittings | Ether-Based Polyurethane | Red | 10ft Length

HSC2844-04X10 Kuri-Tec by Kuriyama | HSC2844 Series | Self-Store Coiled Tubing Assemblies for Air Tool Service | 1/4" ID | .375" OD | 1/4" x 1/4" Male NPT Fittings | Ether-Based Polyurethane | Red | 10ft Length

Save $2.49 Save $2.49
$24.97
$24.97 - $24.97
$24.97
$22.48
$22.48 - $22.48
$22.48

Kuriyama of America Inc.
Kuri Tec® Series HSC2840 Ether-Based Polyurethane Self-Store Coiled Tubing Assemblies for Air Tool Service - Red
Specifications for Variant SKU: HSC2844-04X10 Kuriyama
Brand: Kuri Tec
Series: HSC2844 Series
Hose Color(s): Red
Internal Diameter: 0.25in
Outer Diameter: 0.375in
Tubing Construction: Polyurethane
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT, Some Ends Match

SPECIFICATIONS

Application: Self-Store Coiled Tubing Assemblies for Air Tool Service SAE Rating: N/A
Other Ratings: N/A Tube: Ether-Based Polyurethane
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +175 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Standard assemblies have 4" pigtail and 20" whip end.
  • Permanent crimped male swivel brass fittings provide greater strength and pull-out resistance.
  • Rubber bend restrictors over fittings prevents scratches and scuffs.
  • Note: Not recommended for transfer of brake fluids.
  • Hose assemblies are furnished with the following fittings:
    • 1/4" ID Hoses: 1/4" x 1/4" Male NPT
    • 3/8" ID Hoses: 3/8" x 1/4" Male NPT
Part Number Nominal ID Nominal OD Working
Pressure		 Working
Length		 Coil OD Standard
Package		 Approx Weight
per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F
(20 deg. C)
(PSI)		 @ 122 deg. F
(50 deg. C)
(PSI)
HSC2844-04X10 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 8 ft. 2 in. 10ft 5 lbs.
HSC2844-04X15 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 12 ft. 2 in. 10ft 6.5 lbs.
HSC2844-04X20 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 16 ft. 2 in. 10ft 8.5 lbs.
HSC2844-04X25 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 20 ft. 2 in. 10ft 10 lbs.
HSC2844-04X30 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 24 ft. 2 in. 10ft 12 lbs.
HSC2844-04X50 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 40 ft. 2 in. 1ft 2 lbs.
HSC2844-06X10 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 8 ft. 3 in. 5ft 5 lbs.
HSC2844-06X15 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 12 ft. 3 in. 5ft 7 lbs.
HSC2844-06X20 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 16 ft. 3 in. 5ft 9 lbs.
HSC2844-06X25 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 20 ft. 3 in. 5ft 11 lbs.
HSC2844-06X30 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 24 ft. 3 in. 5ft 12 lbs.
HSC2844-06X50 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 40 ft. 3 in. 1ft 4 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
