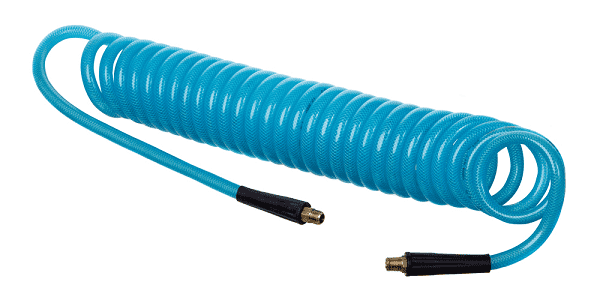

HSC2960-04X15 Kuri-Tec by Kuriyama | HSC2960 Series | Self-Store Reinforced Hose Assembly | Aqua Tint | 1/4" ID | .395" OD | Polyurethane | 15ft Length

Save $12.85

$44.98

$44.98 - $44.98

$44.98

$32.13

$32.13 - $32.13

$32.13

Kuriyama Kuri Tec® Series HSC2960 Polyurethane Self-Store Reinforced Hose Assembly

Specifications for Variant SKU: HSC2960-04X15 Kuriyama
Brand:	Kuri Tec
Series:	HSC2960 Series
Hose Color(s):	Aqua
Internal Diameter:	0.25in
Outer Diameter:	0.395in
Tubing Construction:	Polyurethane
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match

SPECIFICATIONS

Other Features:
Application:	N/A	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	N/A
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
N/A

Part Number	Nominal ID		Nominal OD		Working Pressure		Working Length	Coil OD	Standard Package	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	(ft.)	(in)
HSC2960-04X15	1/4"	6.5mm	.395"	9.5mm	225 PSI	125 PSI	12 ft.	2 in.	10	6.5 lbs.
HSC2960-04X25	1/4"	6.5mm	.395"	9.5mm	225 PSI	125 PSI	12 ft.	2 in.	10	10 lbs.
HSC2960-04X50	1/4"	6.5mm	.395"	9.5mm	225 PSI	125 PSI	40 ft.	2 in.	1	2 lbs.
HSC2960-06X15	3/8"	9.5mm	.570"	14.5mm	225 PSI	125 PSI	12 ft.	3 in.	5	7 lbs.
HSC2960-06X25	3/8"	9.5mm	.570"	14.5mm	225 PSI	125 PSI	20 ft.	3 in.	5	11 lbs.
HSC2960-06X50	3/8"	9.5mm	.570"	14.5mm	225 PSI	125 PSI	40 ft.	3 in.	1	4 lbs.

Note: Each length of assembled tubing or hose includes a 4" pigtail and a 20" whip end, assembled to 1/4" or optional 3/8" (priced upon request) male NPT permanent crimped swivel brass fittings with rubber bend restrictors. Working length is 80% of nominal length shown. 5/16" & 1/2" ID size tubing is priced upon request. Check for availability. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
