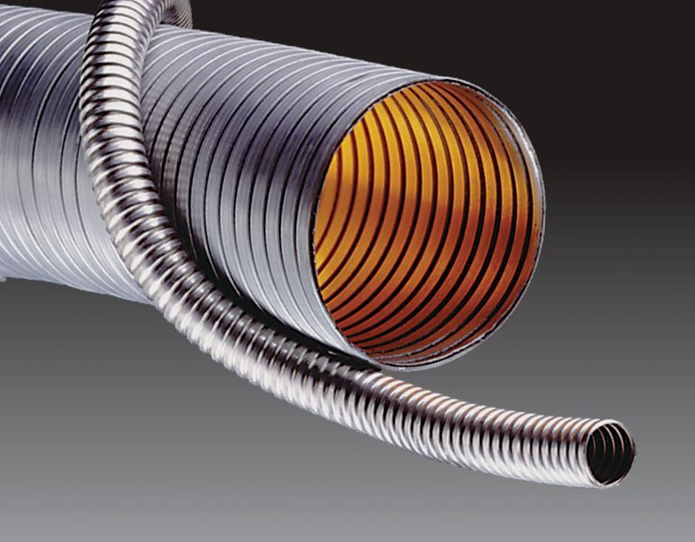

HTG4100-600X25 Kuriyama Hose Tec HT4000 Series Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose - Light Weight - Galvanized Steel - ID: 6" - 25ft

HTG4100-600X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Light Weight | ID: 6" | Galvanized Steel | 25ft Length

Save $150.22 Save $150.22
$375.55
$375.55 - $375.55
$375.55
$225.33
$225.33 - $225.33
$225.33

Kuriyama Hose Tec® HT4000 Series Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose - Low Pressure - Galvanized Steel

Package Quantity: 25 FT

Specifications for Variant SKU: HTG4100-600X25 Kuriyama | 25 |
Brand: Hose Tec
Series: HTG4100 Series
Hose Color(s): Metallic
Internal Diameter: 6in
Tubing Construction: 304 Stainless Steel

SPECIFICATIONS

Application: Abrasive Material Handling, Air Intake Supply; Fresh Air Intake, Bend Restrictor, Bop (Blow Out Protection) for Hydraulic, Cryogenic and Other High Pressure Hoses, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Dust/Fume Collection, Engine Exhaust, Environmental/Industrial Clean-Up, Fly Ash/Soda Ash Handling, Fume Hood Exhaust, Garage Fume Exhaust,Grain Handling, High Temperature Material Handling, Hot Air Blower/Suction, Hot Air Ducting, Industrial Dryer Vents, Liner for Corrugated/Braided Assemblies, Low Temperature Material Transfer, Oven/Kiln Exhaust, Plastic Pellet Transfer, Pneumatic Transfer, Protective Armor/Shielding for Hoses Railcar - Bulk Unloading/Loading, Shielding for Wiring, Spot Cooling/Air Conditioning Ducting, Steam Hose Liner, Truck - Bulk Unloading/Loading, Truck Exhaust/Flexible Tailpipe Exhaust, Vacuum Trucks and Equipment SAE Rating: N/A
Other Ratings: N/A Tube: Galvanized Steel
Reinforcement: N/A Cover: N/A
Temperature Range: Max. Service Temp: Up to 750 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Construction: A single metal strip is formed to create a flexible interlocked metal hose that offers maximum flexibility and strength, as well as superior service life.
  • Available in Galvanized steel with strip thicknesses from 0.010" to 0.031".
  • High strength construction.
  • Temperature and corrosion-resistant.
  • Flexible... can be formed and holds its shape, yet is easily moved.
  • Can be formed and holds its shape, yet is easily moved.
Part Number Hose Size ID (in.) Min Inside Bend Radius (in.) Length (ft.) Weight (per foot)
HTG4100-031X25 5/16" 1.25" 25ft 0.10 lbs
HTG4100-037X25 3/8" 1.50" 25ft 0.12 lbs
HTG4100-050X25 1/2" 1.75" 25ft 0.15 lbs
HTG4100-062X25 5/8" 2.00" 25ft 0.20 lbs
HTG4100-075X25 3/4" 2.625" 25ft 0.25 lbs
HTG4100-100X25 1" 3.50" 25ft 0.33 lbs
HTG4100-125X25 1-1/4" 4.00" 25ft 41 lbs
HTG4100-137X25 1-3/8" 4.25" 25ft 0.45 lbs
HTG4100-150X25 1-1/2" 4.75" 25ft 50 lbs
HTG4100-162X25 1-5/8" 5.00" 25ft 0.54lbs
HTG4100-175X25 1-3/4" 5.25" 25ft 0.58lbs
HTG4100-200X25 2" 6.00" 25ft 0.70lbs
HTG4100-225X25 2-1/4" 6.75" 25ft 0.75lbs
HTG4100-250X25 2-1/2" 7.50" 25ft 0.80lbs
HTG4100-275X25 2-3/4" 8.75" 25ft 0.90lbs
HTG4100-300X25 3" 10.00" 25ft 1.00lbs
HTG4100-325X25 3-1/4" 10.50" 25ft 1.10lbs
HTG4100-350X25 3-1/2" 11.00" 25ft 1.20lbs
HTG4100-400X25 4" 12.50" 25ft 1.40lbs
HTG4100-450X25 4-1/2" 14.00" 25ft 1.50lbs
HTG4100-500X25 5" 15.00" 25ft 1.70lbs
HTG4100-525X25 5-1/4" 16.00" 25ft 1.80lbs
HTG4100-550X25 5-1/2" 17.50" 25ft 1.90lbs
HTG4100-600X25 6" 20.00" 25ft 2.00lbs
HTG4100-625X25 6-1/4" 20.50" 25ft 2.10lbs
HTG4100-650X25 6-1/2" 21.00" 25ft 2.20lbs
HTG4100-700X25 7" 22.00" 25ft 2.40lbs
HTG4100-725X25 7-1/4" 23.00" 25ft 2.50lbs
HTG4100-750X25 7-1/2" 24.00" 25ft 2.60lbs
HTG4100-800X25 8" 25.00" 25ft 2.70lbs
Note : If utilizing packing material, service temperatures may vary. Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
