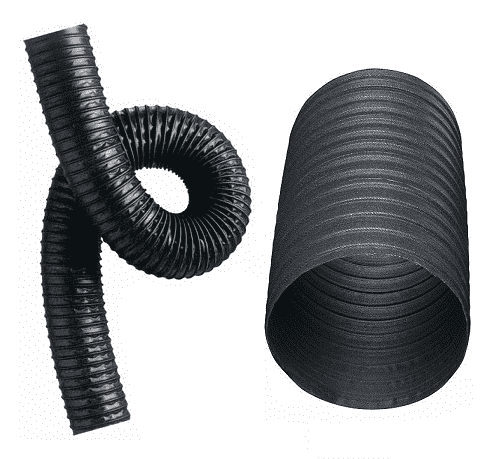

HTNP2-400X25 by Kuriyama | Series HTNP | Neo-Duct Ducting Hose | Black | ID: 4" | 23 PSI | Neoprene Coated | 25ft Length

Save $76.08

$266.28

$266.28 - $266.28

$266.28

$190.20

$190.20 - $190.20

$190.20

Kuriyama Ducting Hose - Neo-Duct® Neoprene Ducting Hose Series HTNP2 - Black

Package Quantity: 25 FT

Specifications for Variant SKU: HTNP2-400X25 Kuriyama \| 25 \|
Brand:	FLEXAIR, Neo-Duct
Series:	HTNP2 Series
Hose Color(s):	Black
Internal Diameter:	4in
Tubing Construction:	Neoprene Coated Polyester
Applicable Specs & Approvals:	RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Dust collection, Air movement, Fume control, Light Material Handling	SAE Rating:	N/A
Other Ratings:	UL94V-O	Tube:	Neoprene-coated two-ply polyester
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-65 deg. F (-54 deg. C) to 250 deg. F (+127 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Double-ply construction - works extremely well in both positive and negative pressure applications, offers extreme flexibility and compressibility, combined with excellent crush-resistance and tensile strength. Recommended for all air handling applications, dust and fume control and light material handling. Neoprene coating with polyester fabric construction - provides excellent flexibility, will not rot Manufactured to meet UL94V-O rating Standard packaging: 25' lengths in cartons

Part Number	Nominal ID		Min. Bend. Radius		Max Working* Pressure	Length	Weight
	(in.)	(mm)	(in.)	(mm)	PSI		(lbs/ft)
HTNP2-150X25	1-1/2"	38.1mm	2.6"	66.0mm	32 PSI	25ft	.16 lbs
HTNP2-200X018	2"	50.8mm	3.5"	88.9mm	30 PSI	18ft	.16 lbs
HTNP2-200X055	2"	50.8mm	3.5"	88.9mm	30 PSI	55ft	.16 lbs
HTNP2-200X25	2"	50.8mm	3.5"	88.9mm	30 PSI	25ft	.16 lbs
HTNP2-250X25	2-1/2"	63.5mm	4.0"	101.6mm	28 PSI	25ft	.28 lbs
HTNP2-300X25	3"	76.2mm	5.0"	127.0mm	25 PSI	25ft	.33 lbs
HTNP2-350X25	3-1/2"	88.9mm	5.7"	144.8mm	24 PSI	25ft	.42 lbs
HTNP2-400X25	4"	101.6mm	6.5"	165.1mm	23 PSI	25ft	.48 lbs
HTNP2-500X25	5"	127.0mm	7.5"	190.5mm	22 PSI	25ft	.61 lbs
HTNP2-600X25	6"	152.4mm	9.0"	228.6mm	21 PSI	25ft	.70 lbs
HTNP2-700X25	7"	177.8mm	9.5"	241.3mm	20 PSI	25ft	.92 lbs
HTNP2-800X25	8"	203.2mm	10.0"	254.0mm	19 PSI	25ft	1.04 lbs
HTNP2-250X25	10"	254mm	11.0"	279.4mm	18 PSI	25ft	1.36 lbs
HTNP2-1200X25	12"	304.8mm	13.5"	342.9mm	17 PSI	25ft	1.85 lbs
HTNP2-1400X25	14"	355.6mm	15.5"	393.7mm	16 PSI	25ft	2.10 lbs
HTNP2-1600X25	16"	406.4mm	18.5"	469.9mm	15 PSI	25ft	2.40 lbs
HTNP2-1800X25	18"	457.2mm	22.0"	558.8mm	6 PSI	25ft	2.70 lbs
HTNP2-2000X25	20"	508.0mm	24.0"	609.6mm	4 PSI	25ft	3.00 lbs

* Minimum burst pressure 4:1 safety factor for ID sizes 1" to 2" and 3:1 for ID sizes 2 1/2" to 3".

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
