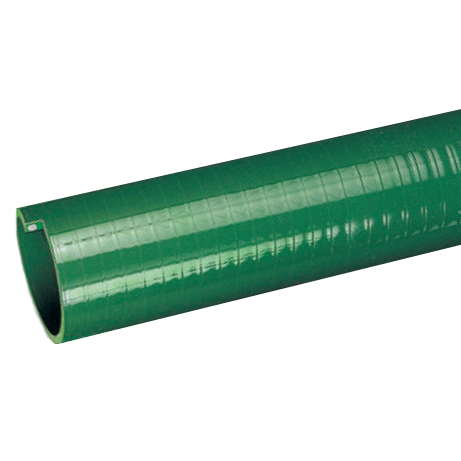

Kuriyama Tigerflex J™ Series Standard Duty PVC Suction Hose

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: J400X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	J Series
Hose Color(s):	Green
Internal Diameter:	4in
Outer Diameter:	4.50in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable MSHA Standards, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Agricultural liquid fertilizer, Air seeder lines, Drain lines, Irrigation lines, Mining applications (MSHA), Pumps, trash, Rock dusting, Water suction - standard duty, Rental and Construction Dewatering	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	MSHA(09), RoHS(10)
MSHA(09) Approved (J Series only) - Approved by the Mine Safety and Health Administration for flame-resistance for use in underground mines as water transfer hose. Smooth Outer Cover (Sizes 3/4" - 5") - Provides increased pressure rating and smooth surface for banding. Convoluted Outer Cover (Sizes 6" & 8") - Provides increased hose flexibility.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
J075X100	3/4"	19.0mm	1.01"	25.6mm	110 PSI	70 PSI	28 in.Hg	26 in.Hg	3"	100ft	0.19 lbs
J100X100	1"	25.4mm	1.26"	32.0mm	85 PSI	60 PSI	28 in. Hg	26 in .Hg	3"	100ft	0.26 lbs
J125X100	1-1/4"	31.7mm	1.56"	39.6mm	85 PSI	60 PSI	28 in. Hg	24 in .Hg	4"	100ft	0.35 lbs
J150X100	1-1/2"	38.1mm	1.83"	46.5mm	70 PSI	50 PSI	28 in. Hg	24 in. Hg	5"	100ft	0.48 lbs
J200X100	2"	50.8mm	2.32"	59.0mm	65 PSI	45 PSI	28 in. Hg	24 in. Hg	7"	100ft	0.66 lbs
J250X100	2-1/2"	63.5mm	2.87"	73.0mm	65 PSI	45 PSI	28 in. Hg	24 in. Hg	8"	100ft	0.87 lbs
J300X100	3"	76.2mm	3.43"	87.0mm	60 PSI	40 PSI	28 in. Hg	22 in. Hg	10"	100ft	1.24 lbs
J400X100	4"	101.6mm	4.50"	114.7mm	50 PSI	35 PSI	28 in. Hg	22 in. Hg	15"	100ft	1.85 lbs
J600X100	6"	152.4mm	6.75"	171.4mm	40 PSI	25 PSI	28 in. Hg	20 in. Hg	30"	100ft	3.39 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
