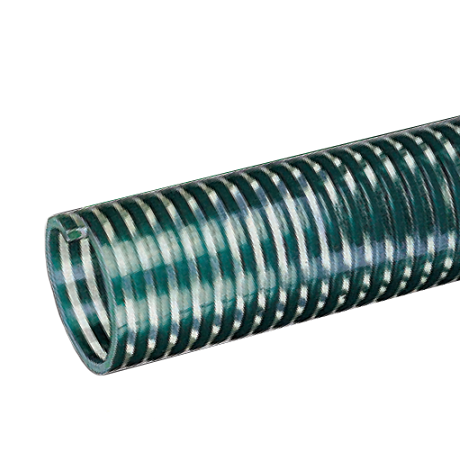

K075X100 Kuriyama Tigerflex K Series Standard Duty PVC Suction Hose - 3/4" - 100ft

K075X100 Tigerflex by Kuriyama | K Series | Standard Duty Suction Hose | 3/4" ID | PVC | 100ft Length

Save $49.20

$172.20

$172.20 - $172.20

$172.20

$123.00

$123.00 - $123.00

$123.00

Kuriyama
Tigerflex® | K™ Series | Standard-Duty Suction Hose | PVC

Designed for agricultural, mining, and construction applications.

Ideal for liquid fertilizer transfer, irrigation and air seeder lines, drain lines, dewatering and trash pumps, rock dusting, and standard-duty water suction.

Made in the USA.

Package Quantity: 100 FT

Specifications for Variant SKU: K075X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	K Series
Hose Color(s):	Green & Clear/Semi-Clear
Internal Diameter:	0.75in
Outer Diameter:	1.01in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable MSHA Standards, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Agricultural liquid fertilizer, Air seeder lines, Drain lines, Pumps, rental and construction dewatering Trash, Rock dusting, Water suction - standard duty, Irrigation lines	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	MSHA(09), RoHS(10)
Transparent Construction (H & K Series only) - "See-the flow." Allows for visual confirmation of material flow. Smooth Outer Cover (Sizes 3/4" - 5") - Provides increased pressure rating and smooth surface for banding. Convoluted Outer Cover (Sizes 6" & 8") - Provides increased hose flexibility.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
K075X100	3/4"	19.0mm	1.01"	25.6mm	110 PSI	70 PSI	28 in.Hg	26 in.Hg	3"	100ft	0.19 lbs
K100X100	1"	25.4mm	1.26"	32.0mm	85 PSI	60 PSI	28 in. Hg	26 in .Hg	3"	100ft	0.26 lbs
K125X100	1-1/4"	31.7mm	1.56"	39.6mm	85 PSI	60 PSI	28 in. Hg	24 in .Hg	4"	100ft	0.35 lbs
K150X100	1-1/2"	38.1mm	1.83"	46.5mm	70 PSI	50 PSI	28 in. Hg	24 in. Hg	5"	100ft	0.48 lbs
K200X100	2"	50.8mm	2.32"	59.0mm	65 PSI	45 PSI	28 in. Hg	24 in. Hg	7"	100ft	0.66 lbs
K250X100	2-1/2"	63.5mm	2.87"	73.0mm	65 PSI	45 PSI	28 in. Hg	24 in. Hg	8"	100ft	0.87 lbs
K300X100	3"	76.2mm	3.43"	87.0mm	60 PSI	40 PSI	28 in. Hg	22 in. Hg	10"	100ft	1.24 lbs
K400X100	4"	101.6mm	4.50"	114.7mm	50 PSI	35 PSI	28 in. Hg	22 in. Hg	15"	100ft	1.85 lbs
K600X100	6"	152.4mm	6.75"	171.4mm	40 PSI	25 PSI	28 in. Hg	20 in. Hg	30"	100ft	3.39 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
