K1154-10X300 Kuri-Tec by Kuriyama | K1154 Series | General Purpose Air & Water Hose | Red | 5/8" ID | .895" OD | PVC | 300ft Length

K1154-10X300 Kuri-Tec by Kuriyama | K1154 Series | General Purpose Air & Water Hose | Red | 5/8" ID | .895" OD | PVC | 300ft Length

Save $111.60 Save $111.60
$390.60
$390.60 - $390.60
$390.60
$279.00
$279.00 - $279.00
$279.00

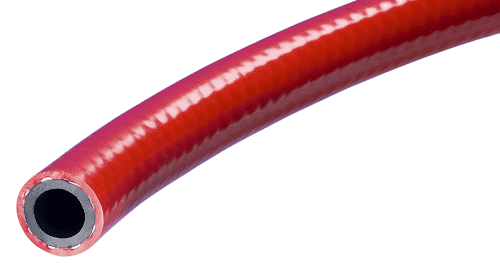

Kuriyama Kuri Tec® Series K1154 General Purpose PVC Air & Water Hose - Red A general purpose PVC air and Water Red Hose for in plant and outdoor applications in temperate climate conditions.

Package Quantity: 300 FT

Specifications for Variant SKU: K1154-10X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: K1154 Series
Hose Color(s): Red
Internal Diameter: 0.625in
Outer Diameter: 0.895in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: Transfer of air, water and mild water soluble chemicals, Ideal for in-plant applications that require an economical general purpose hose, Excellent air supply line for pneumatic tools and paint spray systems. SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC compound
Reinforcement: High tensile strength yarn Cover: PVC compound
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Economical, flexible and lightweight.
  • Excellent abrasion resistance.
  • U. V. and weather resistant.
  • Non-marking pin-pricked cover.
  • Silicone-free core and cover.
  • Complies with RMA's Class B designation for medium/high oil resistance.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K1154-04X100 1/4" 6.4mm .500" 12.7mm 300 PSI 150 PSI 100 ft. 8 lbs.
K1154-04X500 1/4" 6.4mm .500" 12.7mm 300 PSI 150 PSI 500 ft. 44 lbs.
K1154-05X100 5/16" 7.9 mm .625" 15.9mm 300 PSI 150 PSI 100 ft. 13 lbs.
K1154-05X500 5/16" 7.9 mm .625" 15.9mm 300 PSI 150 PSI 500 ft. 68 lbs.
K1154-06X100 3/8" 9.5mm .625" 15.9mm 300 PSI 150 PSI 100 ft. 11 lbs.
K1154-06X500 3/8" 9.5mm .625" 15.9mm 300 PSI 150 PSI 500 ft. 56 lbs.
K1154-08X100 1/2" 12.7mm .750" 19.1mm 300 PSI 150 PSI 100 ft. 14 lbs.
K1154-08X500 1/2" 12.7mm .750" 19.1mm 300 PSI 150 PSI 500 ft. 77 lbs.
K1154-10X100 5/8" 15.9mm .895" 22.6mm 200 PSI 100 PSI 100 ft. 18 lbs.
K1154-10X300 5/8" 15.9mm .895" 22.6mm 200 PSI 100 PSI 300 ft. 60 lbs.
K1154-12X100 3/4" 19.1mm 1.030" 26.2mm 200 PSI 75 PSI 100 ft. 22 lbs.
K1154-12X300 3/4" 19.1mm 1.030" 26.2mm 200 PSI 75 PSI 300 ft. 72 lbs.
K1154-16X100 1" 25.4mm 1.313" 33.3mm 150 PSI 75 PSI 100 ft. 31 lbs.
K1154-16X300 1" 25.4mm 1.313" 33.3mm 150 PSI 75 PSI 300 ft. 105 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
