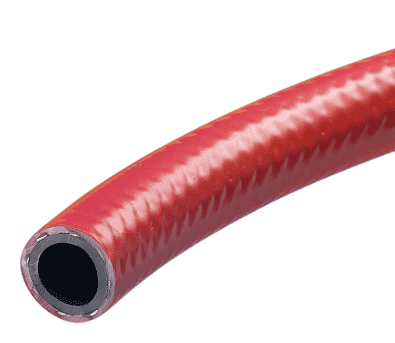

K1184-04X500 Kuri-Tec by Kuriyama | K1184 Series | Utility Grade Air Hose | Red | 1/4" ID | .475" OD | PVC | 500ft Length

K1184-04X500 Kuri-Tec by Kuriyama | K1184 Series | Utility Grade Air Hose | Red | 1/4" ID | .475" OD | PVC | 500ft Length

Save $13.14 Save $13.14
$148.14
$148.14 - $148.14
$148.14
$135.00
$135.00 - $135.00
$135.00

Kuriyama Kuri Tec® Series K1184 Utility Grade PVC Air Hose - Red A lightweight utility air and water hose economically designed for indoor and outdoor applications operating in temperate climate conditions.

Package Quantity: 500 FT

Specifications for Variant SKU: K1184-04X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: K1184 Series
Hose Color(s): Red
Internal Diameter: 0.25in
Outer Diameter: 0.475in
Tubing Construction: PVC
Cover Construction: PVC

SPECIFICATIONS

Application: Transfer of air, water and mild water soluble chemicals, Indoor/outdoor air tool service. SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC compound
Reinforcement: High tensile strength yarn Cover: PVC compound
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Economical, lightweight construction.
  • One-piece coils.
  • U. V. and weather resistant.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) Coils
K1184-04X500 1/4" 6.5mm .475" 12.1mm 300 PSI 500 ft. 35 lbs.
K1184-06X500 3/8" 9.5mm .600" 15.2mm 300 PSI 500 ft. 47.5 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
