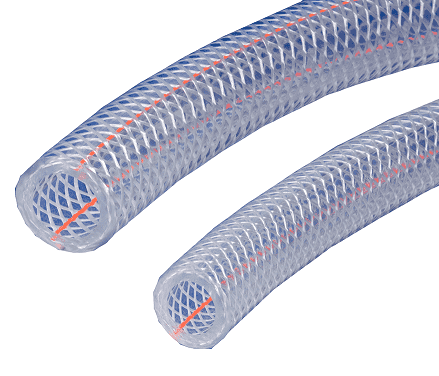

K3150-12X200 Kuri-Tec by Kuriyama | Clearbraid K3150 Series | RF Standard Wall Food & Beverage Clear Hose | 3/4" ID | 1.031" OD | PVC | 200ft Length

K3150-12X200 Kuri-Tec by Kuriyama | Clearbraid K3150 Series | RF Standard Wall Food & Beverage Clear Hose | 3/4" ID | 1.031" OD | PVC | 200ft Length

Save $32.59 Save $32.59
$325.92
$325.92 - $325.92
$325.92
$293.33
$293.33 - $293.33
$293.33

Kuriyama Kuri-Tec Clearbraid® - K3150 Series RF Standard Wall - PVC Food & Beverage Hose



A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications.

Package Quantity: 200 FT

Specifications for Variant SKU: K3150-12X200 Kuriyama | 200 |
Brand: Kuri Tec
Series: K3150 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 0.75in
Outer Diameter: 1.031in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI
Application: Food & beverage dispensing, Air and water lines, Deionized water, Powdered food products, Liquid food products, Potable water transfer, Air breathing lines, Pneumatic lines, Packaging machines. SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), RoHS(15) and USP(18) Class VI criteria.
Reinforcement: Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification. Cover: N/A
Temperature Range: 25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), UL(16), USDA(17), USP(18)
Other Features:
  • Constructed with non-toxic compounds.
  • NSF-51 certified material.
  • Crystal clear - allows visual confirmation of product flow.
  • Longitudinally-reinforced to reduce elongation under pressure.
  • Light weight.
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • Non-conductive.
  • One-piece lengths.
  • Resistant to chemicals (see chemical-resistance chart).
  • Compound hardness 73±3 Shore "A".
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
K3150-03X100 3/16" 4.8mm .375" 9.5mm 250 PSI 150 PSI 100 ft. 4 lbs.
K3150-03X300 3/16" 4.8mm .375" 9.5mm 250 PSI 150 PSI 300 ft. 13 lbs.
K3150-04X100 1/4" 6.5mm .438" 11.1mm 250 PSI 150 PSI 100 ft. 6 lbs.
K3150-04X300 1/4" 6.5mm .438" 11.1mm 250 PSI 150 PSI 300 ft. 17 lbs.
K3150-05X100 5/16" 7.9mm .531" 13.5mm 250 PSI 135 PSI 100 ft. 8 lbs.
K3150-05X300 5/16" 7.9mm .531" 13.5mm 250 PSI 135 PSI 300 ft. 24 lbs.
K3150-06X100 3/8" 9.5mm .594" 15.1mm 225 PSI 125 PSI 100 ft. 9 lbs.
K3150-06X300 3/8" 9.5mm .594" 15.1mm 225 PSI 125 PSI 300 ft. 27 lbs.
K3150-08X100 1/2" 12.7mm .750" 19.1mm 200 PSI 100 PSI 100 ft. 13 lbs.
K3150-08X300 1/2" 12.7mm .750" 19.1mm 200 PSI 100 PSI 300 ft. 40 lbs.
K3150-08X600R 1/2" N/A N/A N/A N/A N/A 600 ft. N/A
K3150-10X100 5/8" 15.9mm .891" 22.6mm 200 PSI 100 PSI 100 ft. 18 lbs.
K3150-10X200 5/8" 15.9mm .891" 22.6mm 200 PSI 100 PSI 200 ft. 35 lbs.
K3150-12X100 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 100 ft. 22 lbs.
K3150-12X200 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 200 ft. 43 lbs.
K3150-12X825R 3/4" N/A N/A N/A N/A N/A 825 ft. N/A
K3150-16X100 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 100 ft. 30 lbs.
K3150-16X200 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 200 ft. 59 lbs.
K3150-16X600R 1" N/A N/A N/A N/A N/A 600 ft. N/A
K3150-16X750R 1" N/A N/A N/A N/A N/A 750 ft. N/A
K3150-20X100 1-1/4" 31.8mm 1.620" 41.1mm 100 PSI 55 PSI 100 ft. 45 lbs.
K3150-20X50 1-1/4" 31.8mm 1.620" 41.1mm 100 PSI 55 PSI 50 ft. 23 lbs.
K3150-24X100 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI 100 ft. 64 lbs.
K3150-24X50 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI 50 ft. 32 lbs.
K3150-32X100 2" 50.8mm 2.490" 63.2mm 75 PSI 35 PSI 100 ft. 94 lbs.
K3150-32X50 2" 50.8mm 2.490" 63.2mm 75 PSI 35 PSI 50 ft. 47 lbs.
K3150-MM04X100 .157" 4.0mm .354" 9.0mm 250 PSI 150 PSI 100 ft. 4 lbs.
K3150-MM06X100 .236" 6.0mm .433" 11.0mm 250 PSI 150 PSI 100 ft. 6 lbs.
K3150-MM08X100 .315" 8.0mm .531" 13.5mm 250 PSI 135 PSI 100 ft. 8 lbs.
K3150-MM10X100 .394" 10.0mm .630" 16.0mm 225 PSI 125 PSI 100 ft. 10 lbs.
K3150-MM12X100 .472" 12.0mm .709" 18.0mm 200 PSI 100 PSI 100 ft. 12 lbs.
K3150-MM19X100 .748" 19.0mm 1.024" 26.0mm 150 PSI 85 PSI 100 ft. 21 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec Clearbraid® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CLEARBRAID® is a registered trademark of Accuflex Industrial Hose, Ltd. and is used under license by Kuriyama of America, Inc.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
