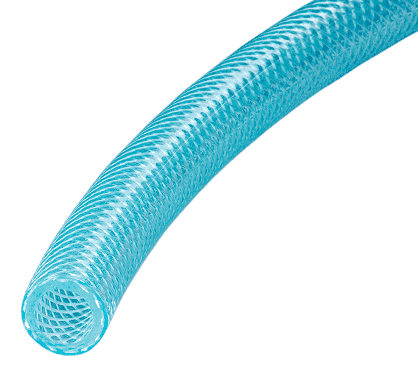

K5090-06X500 Kuri-Tec by Kuriyama | PNEU-THANE K5090 Series | Tint Lightweight Reinforced Pneumatic Air Tool Hose | Aqua | 3/8" ID | .560" OD | Polyurethane | 500ft Length

K5090-06X500 Kuri-Tec by Kuriyama | PNEU-THANE K5090 Series | Tint Lightweight Reinforced Pneumatic Air Tool Hose | Aqua | 3/8" ID | .560" OD | Polyurethane | 500ft Length

Save $350.40 Save $350.40
$1,226.40
$1,226.40 - $1,226.40
$1,226.40
$876.00
$876.00 - $876.00
$876.00

Kuriyama Kuri Tec® PNEU-THANE™ Series K5090 Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose - Aqua An extremely lightweight, tough, flexible pneumatic air tool hose that is suitable for a wide range of industrial and construction applications.

Package Quantity: 500 FT

Specifications for Variant SKU: K5090-06X500 Kuriyama | 500 |
Brand: Kuri Tec, PNEU-THANE
Series: K5090 Series
Hose Color(s): Aqua
Internal Diameter: 0.375in
Outer Diameter: 0.56in
Tubing Construction: Polyurethane
Cover Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: For use with pneumatic air tools such as roofing nailers, sanders, chippers, impact wrenches, screwdrivers and staplers. In-plant assembly line air service, Construction sites, Automotive repair and body shops, Marine applications, Air service for spray painting equipment SAE Rating: N/A
Other Ratings: N/A Tube: Clear ether-based polyurethane.
Reinforcement: High tensile strength yarn. Cover: Ether-based polyurethane
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Very lightweight and flexible - helps to cut down on work-related injuries.
  • Good flex fatigue and resilience characteristics.
  • Excellent resistance to oils and solvents.
  • High oil resistance, complies with RMA's Class A Designation.
  • Superior cut-resistance.
  • High abrasion-resistance - provides extra long life compared with conventional PVC or rubber air hoses.
  • Good resistance to hydrolysis and algae in warm water applications.
  • Silicone-free core and cover
  • Non-conductive compounds.
  • Non-marking cover.
  • One-piece lengths.
  • RoHS(15) compliant.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K5090-04X100 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 100 ft. Coil 4 lbs.
K5090-04X500 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 500 ft. Reel 27 lbs.
K5090-05X100 5/16" 8.0mm .472" 12.0mm 250 PSI 200 PSI 100 ft. Coil 5 lbs.
K5090-05X500 5/16" 8.0mm .472" 12.0mm 250 PSI 200 PSI 500 ft. Reel 32 lbs.
K5090-06X100 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 100 ft. Coil 8 lbs.
K5090-06X500 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 500 ft. Reel 47 lbs.
K5090-08X100 1/2" 12.5mm .688" 17.5mm 250 PSI 200 PSI 100 ft. Coil 10 lbs.
K5090-08X500 1/2" 12.5mm .688" 17.5mm 250 PSI 200 PSI 500 ft. Reel 57 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
