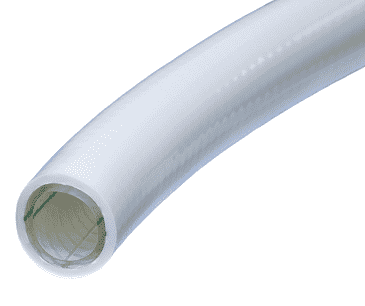

K6155-16X200 Kuri-Tec by Kuriyama | K6155 Series | High Purity Non-Toxic Potable White Water Hose | 1" ID | 1.300" OD | PVC | 200ft Length

K6155-16X200 Kuri-Tec by Kuriyama | K6155 Series | High Purity Non-Toxic Potable White Water Hose | 1" ID | 1.300" OD | PVC | 200ft Length

Save $51.56 Save $51.56
$515.56
$515.56 - $515.56
$515.56
$464.00
$464.00 - $464.00
$464.00

Kuriyama Kuri Tec® Series K6155 High Purity Non-Toxic PVC Potable Water Hose - White A flexible, non-contaminating food grade hose that is ideal for use in food, beverage and water applications.

Package Quantity: 200 FT

Specifications for Variant SKU: K6155-16X200 Kuriyama | 200 |
Brand: Kuri Tec
Series: K6155 Series
Hose Color(s): White/Off-White
Internal Diameter: 1in
Outer Diameter: 1.30in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 51, NSF 61, RoHS Compliant

SPECIFICATIONS

Application: Transfer of potable water, Transfer of deionized water, Induction welding tubing lines, Temporary residential water supply lines, Water transfer lines for semiconductor manufacturing, where applicable, Applications requiring a non-conductive hose. SAE Rating: N/A
Other Ratings: N/A Tube: Clear PVC compound, formulated in compliance with FDA(03) and NSF(11)(13) criteria.
Reinforcement: High tensile strength yarn. Cover: Non-Toxic PVC Compound
Temperature Range: -25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), NSF(11)(13), RoHS(15)
Other Features:
  • Made with PVC compounds certified under NSF-51/NSF-61.
  • Jacket reduces tendency for algae growth and U. V. degradation in warm sunny applications.
  • Non-marking cover.
  • Non-perforated cover.
  • Non-conductive compounds.
  • Silicone-free.
  • One-piece lengths.
  • RoHS(15) compliant.

Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
K6155-08X300 1/2" 12.7mm .750" 19.1mm 200 PSI 100 PSI 300ft. 40 lbs.
K6155-12X200 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 200ft 43 lbs.
K6155-16X200 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 200ft 59 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
