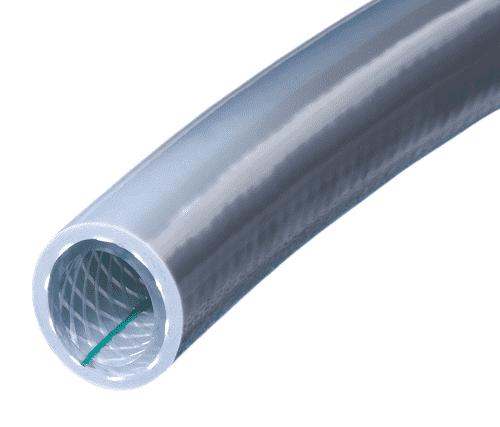

K6158-08X300 Kuri-Tec by Kuriyama | K6158 Series | High Purity Non-Toxic Potable Grey Water Hose | 1/2" ID | .750" OD | PVC | 300ft Length

K6158-08X300 Kuri-Tec by Kuriyama | K6158 Series | High Purity Non-Toxic Potable Grey Water Hose | 1/2" ID | .750" OD | PVC | 300ft Length

Save $30.67 Save $30.67
$306.67
$306.67 - $306.67
$306.67
$276.00
$276.00 - $276.00
$276.00

Kuriyama Kuri Tec® Series K6158 High Purity Non-Toxic PVC Potable Water Hose - Grey

A flexible, non-contaminating food grade hose that is ideal for use in food, beverage and water applications.

Package Quantity: 300 FT

Specifications for Variant SKU: K6158-08X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: K6158 Series
Hose Color(s): Grey
Internal Diameter: 0.50in
Outer Diameter: 0.75in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 51, NSF 61, RoHS Compliant

SPECIFICATIONS

Application: Transfer of potable water, Transfer of deionized water, Induction welding tubing lines, Temporary residential water supply lines, Water transfer lines for semiconductor manufacturing, where applicable, Applications requiring a non-conductive hose. SAE Rating: N/A
Other Ratings: N/A Tube: Clear PVC compound, formulated in compliance with FDA(03) and NSF(11)(13) criteria.
Reinforcement: High tensile strength yarn. Cover: Non-Toxic PVC Compound
Temperature Range: -25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), NSF(11) (13), RoHS(15)
Other Features:
  • Made with PVC compounds certified under NSF-51/NSF-61.
  • White or gray jacket to reduce tendency for algae growth and U. V. degradation in warm sunny applications.
  • Non-marking cover.
  • Non-perforated cover.
  • Non-conductive compounds.
  • Silicone-free.
  • One-piece lengths.
  • RoHS(15) compliant.

Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
K6158-06X300 3/8" 9.5mm .594" 15.1mm 225 PSI 125 PSI 300ft. 27 lbs.
K6158-08X300 1/2" 12.7mm .750" 19.1mm 200 PSI 100 PSI 300ft. 40 lbs.
K6158-12X200 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 200ft 43 lbs.
K6158-16X200 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 200ft 59 lbs.
K6158-24X100 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI 100ft 64 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
