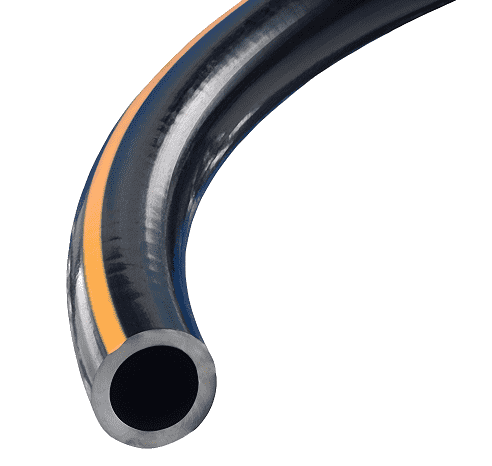

K7000-12X200 Kuri-Tec by Kuriyama | K7000 Series | Anti-Stat Blasting Tubing | Black | 3/4" ID | 1-1/16" OD | 200ft Length

K7000-12X200 Kuri-Tec by Kuriyama | K7000 Series | Anti-Stat Blasting Tubing | Black | 3/4" ID | 1-1/16" OD | 200ft Length

Save $233.28 Save $233.28
$816.48
$816.48 - $816.48
$816.48
$583.20
$583.20 - $583.20
$583.20

Kuriyama Kuri Tec® K7000 Series Anti-Stat Blasting Tubing A specially formulated anti-static PVC tubing for the loading of ammonium nitrate/fuel oil blasting agents used in the mining and construction industries.

Package Quantity: 200 FT

Specifications for Variant SKU: K7000-12X200 Kuriyama | 200 |
Brand: Kuri Tec
Series: K7000 Series
Hose Color(s): Black
Internal Diameter: 0.75in
Outer Diameter: 1.0625in
Tubing Construction: PVC
Special Properties: Conductive Tube

SPECIFICATIONS

Application: Bulk unloading of ammonium nitrate/fuel oil blasting agents in small diameter holes, Successfully used for years with Orica's blast hole chargers, intermediate loaders and the Penberthy Anoloader, Mining and construction site blasting. SAE Rating: N/A
Other Ratings: N/A Tube: Specially-formulated anti-static PVC compound.
Reinforcement: N/A Cover: N/A
Temperature Range: -30 deg. F (-35 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Conductivity - effectively limits build-up of static electricity; provides path for its safe dissipation to ground.
  • Bleeds off static charges built up during pneumatic loading of Ammonium Nitrate/Fuel Oil mixtures.
  • Sufficient resistance - guards blasting circuit against stray electrical currents.
  • Wear resistance - smooth interior and exterior surfaces, combined with tough material formulation, provide good wear resistance.
  • Self-extinguishing characteristics.
  • Excellent flexibility - sufficiently flexible to handle easily, yet rigid enough to reach upwards into collars of steeply-inclined holes.
  • Easily identifiable - co-extruded continuous orange stripe makes tubing visible in underground lighting.
  • Embossed branding - provides lasting identification.
  • Packaged for ease of handling and shipping.
Part Number Inside Diameter Approx. O.D. Max. W.P. Approx Weight per 100ft Approx Mass per 100M Length/Coil
(in.) (mm) (in.) (mm) PSI MPa (lbs.) (Kg.) ft m
K7000-10X200 5/8" 16mm 55/64" 22mm 120 PSI 0.83MPa 17.5lbs. 25kg 200 ft 61m
K7000-12X200 3/4" 19mm 1-1/16" 27mm 120 PSI 0.83MPa 28lbs. 40kg 200 ft 61m
K7000-16X300R 1" 25mm 1-21/64" 34mm 120 PSI 0.83MPa 38lbs. 55kg 300 ft 91m
K7000-20X100 1-1/4" 32mm 1-5/8" 41mm 120 PSI 0.83MPa 55lbs. 78kg 100 ft 30m
NOTE: A new coil of tubing can have its pliancy restored by the application of heat before it is placed in service underground. This will facilitate handling and its attachment to pneumatic loading equipment. Steam or very hot water passed through the coiled tubing will remove the "set" from the new tubing and allow it to be straightened easily. The tubing should then be left to cool in the straight position.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
