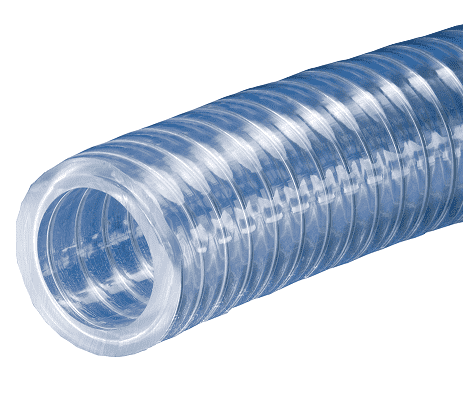

K7130-20X50 Kuri-Tec by Kuriyama | Polywire K7130 Series | Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose | 1-1/4" ID | 1.750" OD | PVC | 50ft Length

K7130-20X50 Kuri-Tec by Kuriyama | Polywire K7130 Series | Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose | 1-1/4" ID | 1.750" OD | PVC | 50ft Length

Save $144.12 Save $144.12
$504.42
$504.42 - $504.42
$504.42
$360.30
$360.30 - $360.30
$360.30

Kuriyama Kuri Tec® POLYWIRE® Series K7130 Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose Heavy wall food and beverage grade vacuum/transfer hose with rated working pressures.

Package Quantity: 50 FT

Specifications for Variant SKU: K7130-20X50 Kuriyama | 50 |
Brand: Kuri Tec
Series: K7130 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1.25in
Outer Diameter: 1.75in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Application: Full vacuum lines, Industrial vacuum pumps, Food & beverage dispensing, Air and water supply lines, Pneumatic parts transfer, Car wash applications, Coolant lines, Air breathing lines, Deionized water systems SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), USP(18) and RoHS(15) criteria.
Reinforcement: Helically-wound spring steel wire Cover: N/A
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), UL(16), USDA(17), USP(18)
Other Features:
  • 29.9" HG vacuum rating.
  • Spiral wire reinforcement prevents kinking or collapsing hose diameter will not expand under normal rated working pressures.
  • Crystal clear - allows visual confirmation of product flow.
  • Glass-smooth interior - reduces material buildup.
  • Electrogalvanized helical steel wire can be used for static dissipation.
  • Resistant to chemicals.
  • Compound hardness 73±3 Shore "A".
  • Self-extinguishing.
  • Non-marking.
  • Non-toxic.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg Min. Bend Radius
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils @ 70 deg. F
K7130-04X100 1/4" 6.4mm .500" 12.7mm 250 PSI 80 PSI 100 ft. 10 lbs. 1"
K7130-04X50 1/4" 6.4mm .500" 12.7mm 250 PSI 80 PSI 50 ft. 5 lbs. 1"
K7130-06X100 3/8" 9.5mm .625" 15.9mm 150 PSI 80 PSI 100 ft. 13 lbs. 1-1/2"
K7130-06X50 3/8" 9.5mm .625" 15.9mm 150 PSI 80 PSI 50 ft. 6.5 lbs. 1-1/2"
K7130-08X100 1/2" 12.7mm .813" 20.7mm 150 PSI 80 PSI 100 ft. 21 lbs. 2"
K7130-08X50 1/2" 12.7mm .813" 20.7mm 150 PSI 80 PSI 50 ft. 10.5 lbs. 2"
K7130-10X100 5/8" 15.9mm 1.000" 25.4mm 150 PSI 65 PSI 100 ft. 30 lbs. 2-1/2"
K7130-10X50 5/8" 15.9mm 1.000" 25.4mm 150 PSI 65 PSI 50 ft. 15 lbs. 2-1/2"
K7130-12X100 3/4" 19.1mm 1.125" 28.6mm 150 PSI 65 PSI 100 ft. 36 lbs. 3"
K7130-12X50 3/4" 19.1mm 1.125" 28.6mm 150 PSI 65 PSI 50 ft. 18 lbs. 3"
K7130-16X100 1" 25.4mm 1.375" 34.9mm 100 PSI 50 PSI 100 ft. 44 lbs. 4"
K7130-16X50 1" 25.4mm 1.375" 34.9mm 100 PSI 50 PSI 50 ft. 22 lbs. 4"
K7130-20X50 1-1/4" 31.8mm 1.750" 44.5mm 100 PSI 50 PSI 50 ft. 37 lbs. 5"
K7130-24X50 1-1/2" 38.1mm 2.000" 50.8mm 100 PSI 35 PSI 50 ft. 42 lbs. 6"
K7130-32X50 2" 50.8mm 2.500" 63.5mm 100 PSI 35 PSI 50 ft. 56 lbs. 8"
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec(registered trademark) yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CAUTION: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
