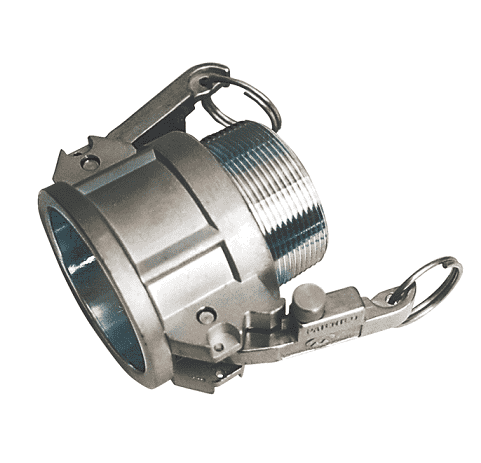

KLOC-SS-B300 by Kuriyama | Quick-Acting Coupling K-Loc™ Auto Lock | Part B | 3" Female Coupler x 3" Male NPT | 316 Stainless Steel

KLOC-SS-B300 by Kuriyama | Quick-Acting Coupling K-Loc™ Auto Lock | Part B | 3" Female Coupler x 3" Male NPT | 316 Stainless Steel

Save $33.74 Save $33.74
$177.61
$177.61 - $177.61
$177.61
$143.87
$143.87 - $143.87
$143.87

Kuriyama Couplings™ - Quick-Acting Couplings - K-Loc™ Auto Lock - Part B - Female Coupler x Male NPT - 316 Stainless Steel

Specifications for Variant SKU: KLOC-SS-B300 Kuriyama
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 3in Male NPT
Material(s): 316 Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Material Handling, Irrigation, Fracking.
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for material and interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy
  • Type 304 stainless steel handles
  • Type 304 stainless steel handle pins
  • Type 304 stainless steel pull rings
  • Type 304 stainless steel safety clips
  • Buna-N Gaskets
Part Number Female Coupler Male NPT Weight (Lbs.)
KLOC-SS-B150 1-1/2" 1-1/2" 1.57 lbs
KLOC-SS-B200 2" 2" 2.09 lbs
KLOC-SS-B300 3" 3" 3.63 lbs
