LF-12-12 by Kurt Hydraulics | Female Flareless | Swivel | 24° Cone | Line Fit Sleeveless Design | for 3/4" Hose ID

Save $13.79

$34.48

$34.48 - $34.48

$34.48

$20.69

$20.69 - $20.69

$20.69

by Kurt Hydraulics
LF - Female Flareless Swivel 24 Degree Cone - Line Fit Sleeveless Design

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: LF-12-12 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Special Properties:	Swivel

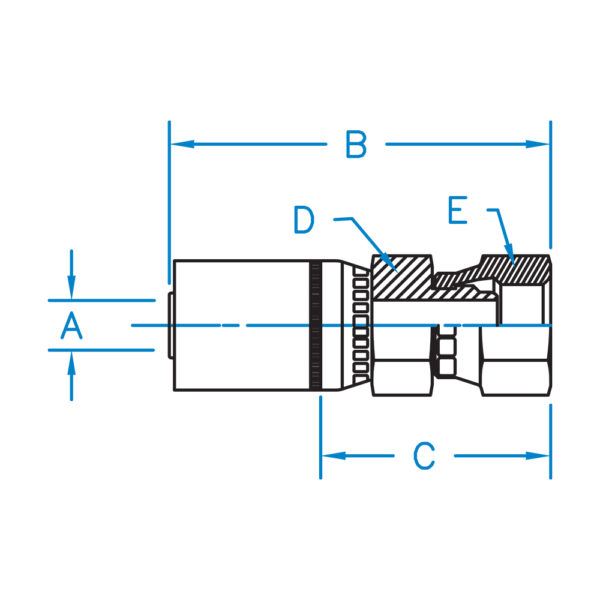

Part Number	A	B	C	D	E	Hose ID (In)	Thread
LF-04-04	0.250	2.402	1.147	9/16	9/16	1/4"	7/16-20
LF-04-05	0.250	2.402	1.147	5/8	5/8	1/4"	1/2-20
LF-04-06	0.250	N/A	N/A	N/A	N/A	1/4"	9/16-18
LF-04-08	0.250	N/A	N/A	N/A	N/A	1/4"	3/4-16
LF-06-05	0.375	N/A	N/A	N/A	N/A	3/8"	1/2-20
LF-06-06	0.375	N/A	N/A	N/A	N/A	3/8"	9/16-18
LF-06-08	0.375	N/A	N/A	N/A	N/A	3/8"	3/4-16
LF-06-10	0.375	N/A	N/A	N/A	N/A	3/8"	7/8-14
LF-08-08	0.500	N/A	N/A	N/A	N/A	1/2"	3/4-16
LF-08-10	0.500	N/A	N/A	N/A	N/A	1/2"	7/8-14
LF-08-12	0.500	N/A	N/A	N/A	N/A	1/2"	1-1/16-12
LF-12-12	0.750	N/A	N/A	N/A	N/A	3/4"	1-1/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
