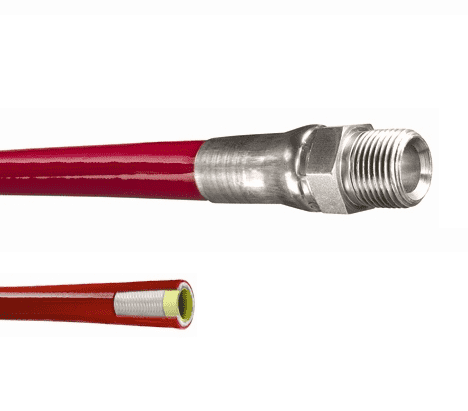

LLRD-MM04X200Kuriyama Piranha® Jetting/Lateral Line Hose Assembly - Red - 1/4" Hose ID - 1/4-18 Male NPTF - 5000 PSI - 200ft

LLRD-MM04X200 by Kuriyama | Piranha® Jetting/Lateral Line Hose Assembly | Red | 1/4" Hose ID | 1/4-18 Male NPTF | 5000 PSI | 200ft Length

Save $22.71 Save $22.71
$227.06
$227.06 - $227.06
$227.06
$204.35
$204.35 - $204.35
$204.35

Kuriyama Piranha "Ready-To-Go" Stock Length Hose Assemblies - Jetting/Lateral Line Hose - Series SLSPOR - Male NPTF x Male NPTF - Red Cover

Specifications for Variant SKU: LLRD-MM04X200 Kuriyama
Brand: Piranha
Series: LLRD Series
Hose Color(s): Red
Internal Diameter: 0.25in
Ends Configuration: 1/4in Male NPTF, 1/4in Male NPTF, Some Ends Match

SPECIFICATIONS

Application: High Pressure Sewer Cleaning - Applications for commercial, industrial and residential. Tight Pipe Bends - Slick, Slither® cover affords an easier handling hose to get the job done. Jetting/Lateral Line - Used for jetting equipment. SAE Rating: N/A
Other Ratings: N/A Inner Tube : Yellow seamless thermoplastic
Reinforcement: High Tensile Double Synthetic Fiber Braids Cover: Abrasion resistant polyether-urethane. (Standard) Slither®: Polyether-urethane low coefficient of friction.(Optional)
Temperature Range: -40 deg. F (-40 deg. C) to +160 deg. F (+71 deg. C) (For the diameters of 1/8", 3/16", 1/4" and 3/8" ) -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) (For the diameters of 1/2" ) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions.
  • Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha® Hose Product.
  • Seamless Thermoplastic Tube - Provides maximum resistance to hydrolysis.
  • High Tensile Double Synthetic Fiber Braid - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption.
  • Abrasion Resistant Polyether-Urethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance.
  • Slither® Cover - Cover is ultra slippery; allows hose to maneuver around and through difficult sewer bends.
  • Pressure Testing - All Piranha® factory-assembled hoses are 100% pressure tested.
  • Reel Installation - Ideal for truck and trailer mounts.
  • Red Cover = 4,000 PSI
  • Stock Lengths - 400, 500, and 600 foot rolls.
Part Number Size Code Hose I.D. Male NPTF Nom. Thread Size Working Pressure Assembled Length Weight
(in.) (Max PSI) (Lbs/Pack)
LLRD-MM04X100 04 1/4" 1/4 - 18 5000 PSI 100ft 6lbs
LLRD-MM04X150 04 1/4" 1/4 - 18 5000 PSI 150ft 8lbs
LLRD-MM04X200 04 1/4" 1/4 - 18 5000 PSI 200ft 12lbs
LLRD-MM06X300 06 3/8" 3/8 - 18 5000 PSI 300ft 39lbs
LLRD-MM08X500 08 1/2" 1/2 - 14 5000 PSI 500ft 65lbs
LLRD-MM08X600 08 1/2" 1/2 - 14 5000 PSI 600ft 78lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
