M-BSPP-06-08 by Kurt Hydraulics | Jump Size | Male British Parallel Pipe 60 Degree Cone | Rigid | for 3/8" Hose ID

Name: M-BSPP-06-08 by Kurt Hydraulics | Jump Size | Male British Parallel Pipe 60 Degree Cone | Rigid | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: M-BSPP-06-08 Kurt
Price: 21.2 USD
Availability: InStock

Save $2.65

$23.85

$23.85 - $23.85

$23.85

$21.20

$21.20 - $21.20

$21.20

by Kurt Hydraulics
M-BSPP - Male British Parallel Pipe 60 deg. Cone Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: M-BSPP-06-08 Kurt
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 1/2in Male BSPP
Special Properties:	Jump Size, Rigid

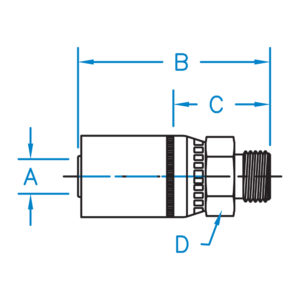

Part Number	A	B	C	D	Hose ID (In)	Thread
M-BSPP-04-04	0.250	2.401	1.146	13/16	1/4"	1/4-19
M-BSPP-04-06	0.250	2.456	1.201	7/8	1/4"	3/8-19
M-BSPP-06-06	0.375	2.716	1.216	7/8	3/8"	3/8-19
M-BSPP-06-08	0.375	2.832	1.332	1-1/16	3/8"	1/2-14
M-BSPP-08-06	0.500	2.795	1.295	7/8	1/2"	3/8-19
M-BSPP-08-08	0.500	2.917	1.415	1-1/16	1/2"	1/2-14
M-BSPP-10-10	0.625	N/A	N/A	N/A	5/8"	5/8-14
M-BSPP-12-12	0.750	3.078	1.485	1-3/8	3/4"	3/4-14
M-BSPP-16-16	1.000	N/A	N/A	N/A	1.000"	1-11
