M-DH08-16-24-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x M24X1.5 Male Din Heavy 24° Seat | Carbon Steel

Name: M-DH08-16-24-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x M24X1.5 Male Din Heavy 24° Seat | Carbon Steel
Brand: Kurt Hydraulics
SKU: M-DH08-16-24-K2 Kurt
Price: 28.37 USD
Availability: InStock

Save $18.91

$47.28

$47.28 - $47.28

$47.28

$28.37

$28.37 - $28.37

$28.37

Kurt Hydraulics
Din Heavy 24° Seat Male Rigid

Specifications for Variant SKU: M-DH08-16-24-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, S16 Male DIN
Material(s):	Carbon Steel

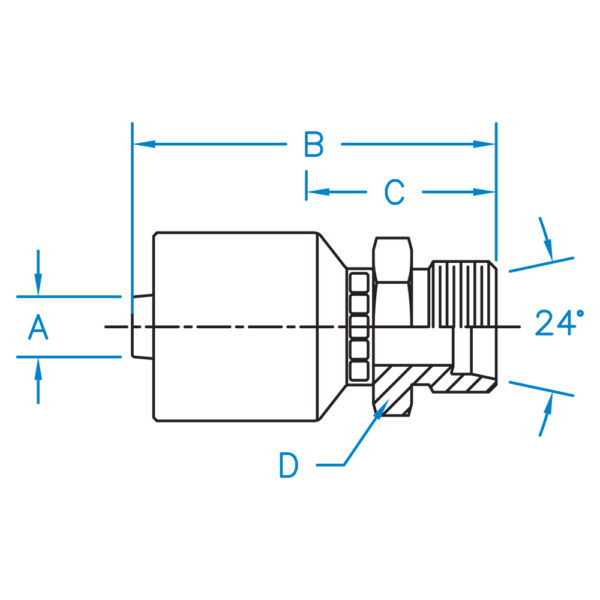

Part Number	Hose I.D. (in.)	B	C	D	Thread
M-DH04-08-16-K2	1/4"	2.10"	1.04"	11/16"	M16 X 1.5
M-DH04-10-18-K2	1/4"	2.10"	1.04"	3/4"	M18 X 1.5
M-DH06-08-16-K2	3/8"	2.43"	1.06"	11/16"	M16 X 1.5
M-DH06-12-20-K2	3/8"	2.43"	1.06"	15/16"	M20 X 1.5
M-DH06-14-22-K2	3/8"	2.52"	1.15"	7/8"	M22 X 1.5
M-DH08-16-24-K2	1/2"	2.53"	1.19"	1"	M24 X 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
