M-DL06-12-18-W by Kurt Hydraulics | Male DIN Light 24 Degree Seat | Rigid | for 3/8" Hose ID

M-DL06-12-18-W by Kurt Hydraulics | Male DIN Light 24 Degree Seat | Rigid | for 3/8" Hose ID

Save $8.58 Save $8.58
$21.45
$21.45 - $21.45
$21.45
$12.87
$12.87 - $12.87
$12.87
by Kurt Hydraulics
M-DL-W - Din Heavy 24 deg. Seat Male Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: M-DL06-12-18-W Kurt
Series: W Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, L18 Male DIN
Special Properties: Rigid

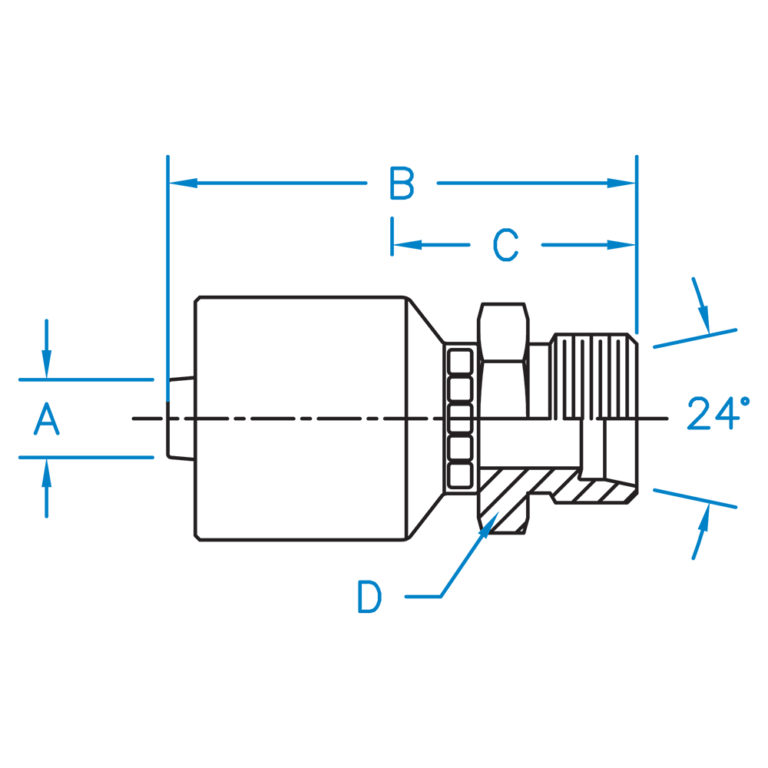

Part Number A B C D Hose ID
(In)		 Thread
M-DL06-12-18-W 0.375 2.392 1.022 3/4 3/8" M18 X 1.5
M-DL06-15-22-W 0.375 2.427 1.057 7/8 3/8" M22 X 1.5
M-DL08-12-18-W 0.500 2.417 1.077 7/8 1/2" M18 X 1.5
M-DL08-15-22-W 0.500 2.452 1.112 7/8 1/2" M22 X 1.5
M-DL10-18-26-W 0.625 3.252 1.152 1-1/16 5/8" M26 X 1.5
M-DL12-22-30-W 0.750 3.095 1.216 1-3/16 3/4" M30 X 2.0
M-DL16-28-36-W 1.000 3.441 1.316 1-1/2 1.000" M36 X 2.0
