M-DL06-15-22 by Kurt Hydraulics | Male DIN Light Universal Seat | Rigid | for 3/8" Hose ID

M-DL06-15-22 by Kurt Hydraulics | Male DIN Light Universal Seat | Rigid | for 3/8" Hose ID

Save $11.45 Save $11.45
$28.62
$28.62 - $28.62
$28.62
$17.17
$17.17 - $17.17
$17.17
by Kurt Hydraulics
M-DL04 - Din Light Universal Seat Male Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: M-DL06-15-22 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, L22 Male DIN
Special Properties: Rigid

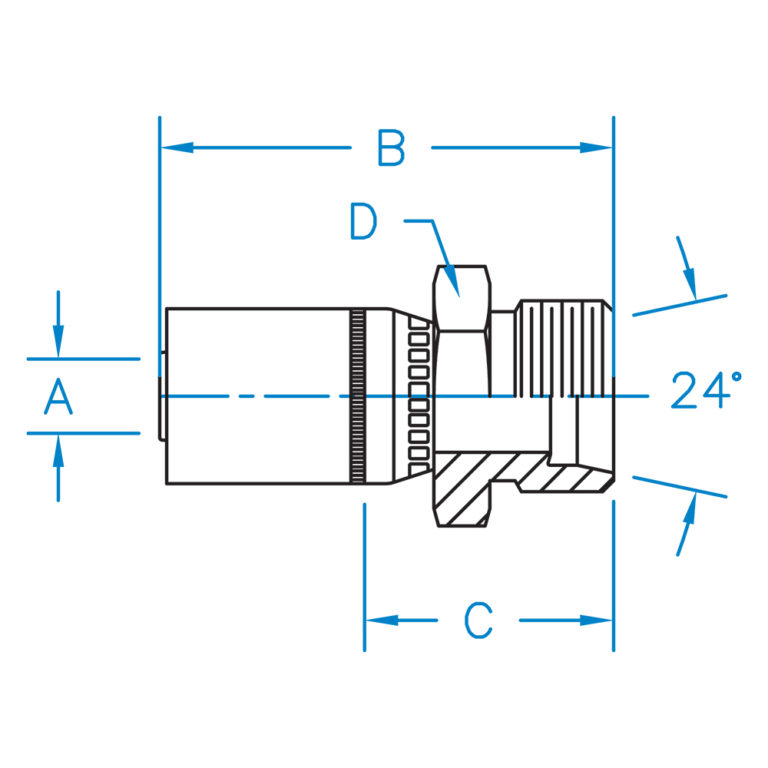

Part Number A B C D Hose ID
(In)		 Thread
M-DL04-06-12 0.250 N/A N/A N/A 1/4" M12 X 1.5
M-DL04-08-14 0.250 2.144 0.889 5/8 1/4" M14 X 1.5
M-DL04-10-16 0.250 2.338 1.083 11/16 1/4" M16 X 1.5
M-DL05-12-18 0.3125 N/A N/A N/A 5/16" M18 X 1.5
M-DL06-10-16 0.375 N/A N/A N/A 3/8" M16 X 1.5
M-DL06-15-22 0.375 N/A N/A N/A 3/8" M22 X 1.5
M-DL08-15-22 0.500 2.718 1.216 7/8 1/2" M22 X 1.5
M-DL10-18-26 0.625 2.732 1.232 1-1/8 5/8" M26 X 1.5
M-DL12-22-30 0.750 2.904 1.311 1-3/16 3/4" M30 X 2.0
M-DL16-28-36 1.000 3.160 1.426 1-1/2 1.000" M36 X 2.0


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
