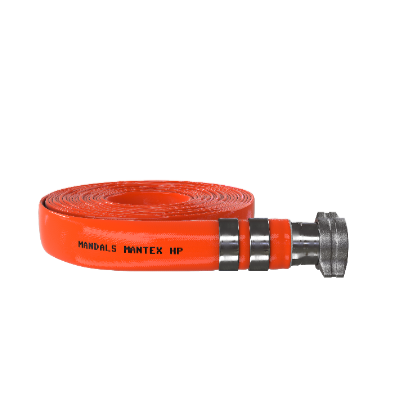

MANTEXHP-2.0 by Texcel | MANTEX HP Series | 2" Hose ID | 0.17 Wall Thickness | 2535 Burst PSI | Red

MANTEXHP-2.0 by Texcel | MANTEX HP Series | 2" Hose ID | 0.17 Wall Thickness | 2535 Burst PSI | Red

$15.82 - $1,318.50
$15.82
$14.06
$14.06 - $1,172.00
$14.06

Texcel
MANTEX HP Series | Lay-Flat Compressed air applications hose

Package Quantity: 100 Units

Specifications for Variant SKU: MANTEXHP-2.0-100 Texcel | 100 |
Series: MANTEX HP Series
Hose Color(s): Red
Internal Diameter: 2in
Mandals MANTEX HP | High Pressure Compressed Air Hose
Mandals Mantex HP is a compressed air hose designed to withstand higher working pressures, while offering a lightweight solution with ease of deployment and storage.
  • APPLICATIONS
    • COMPRESSED AIR
    • WITHSTANDS HIGHER WORKING PRESSURES
  • DESIGN
    • Double jacket hose solution ensures high burst pressure, puncture resistance and flexibility
    • High tensile polyester weaves covered and lined with an ultimate abrasion-resistant and oil-resistant thermoplastic polyurethane (TPU)
  • FEATURES
    • Light, yet rugged and hardwearing hose
    • The low weight, combined with a high pressure rating, makes the hose popular and easy to use
    • The hose does not stretch when pulled and has a very high pressure rating versus wall thickness
    • Excellent abrasion resistance
    • Double Jacket hose with TPU outer layer" inner layer covered with EPDM rubber
  • ADVANTAGE
    • Field-proven hose
    • High working pressure of 635 PSI
    • High Flexibility
    • Coils easily for storage and transportation
    • Max temperature up to +230F
ID Part Number Wall Thickness Weight Burst Pressure Tensile Strength
2" MANTEXHP-2.0 0.17" 0.55 lbs 2535 psi 31.7 lbs
3" MANTEXHP-3.0 0.18" 0.83 lbs 1740 psi 46.6 lbs
NOTE: SAFETY BP/WP IS 2:1 (50%). FOR ALL NON-HAZARD AND/OR NON-FLAMMABLE LIQUIDS.
NOTE: SAFETY FACTOR BP/WP IS 4:1 (25%) FOR COMPRESSED AIR. (ISO 7751:1991)
