MB-08-10 by Kurt Hydraulics | Jump Size | Male O-Ring Boss | for 1/2" Hose ID

MB-08-10 by Kurt Hydraulics | Jump Size | Male O-Ring Boss | for 1/2" Hose ID

Save $3.66 Save $3.66
$9.15
$9.15 - $9.15
$9.15
$5.49
$5.49 - $5.49
$5.49

by Kurt Hydraulics
MB - Male Boss O-Ring Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MB-08-10 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 5/8in Male O-Ring Boss
Special Properties: Jump Size

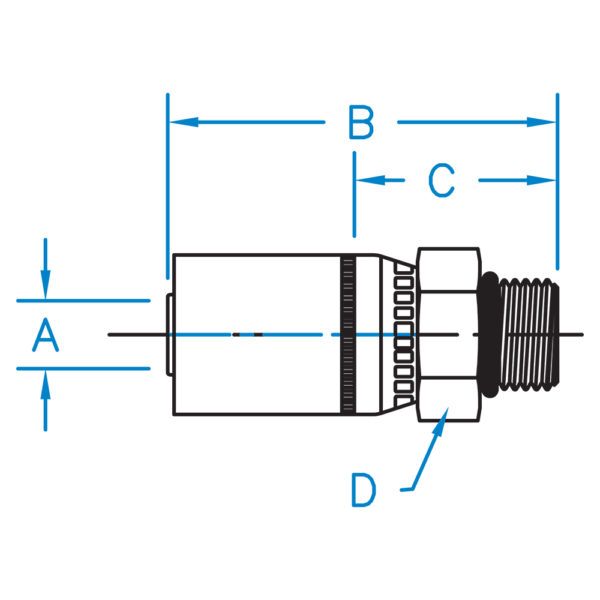

Part Number A B C D Hose ID
(In)		 Thread
MB-03-04 0.187 1.915 0.855 9/16 3/16" 7/16-20
MB-04-04 0.250 2.110 0.855 5/8 1/4" 7/16-20
MB-04-05 0.250 2.110 0.855 5/8 1/4" 1/2-20
MB-04-06 0.250 2.146 0.891 11/16 1/4" 9/16-18
MB-04-08 0.250 2.344 1.089 7/8 1/4" 3/4-16
MB-06-06 0.375 2.496 0.996 11/16 3/8" 9/16-18
MB-06-08 0.375 2.543 1.043 13/16 3/8" 3/4-16
MB-06-10 0.375 2.651 1.154 1-1/16 3/8" 7/8-14
MB-08-08 0.500 2.683 1.183 1-1/8 1/2" 3/4-16
MB-08-10 0.500 2.745 1.849 1.000 1/2" 7/8-14
MB-08-12 0.500 2.844 1.344 1-1/4 1/2" 1-1/16-12
MB-10-10 0.625 2.761 1.261 1-1/4 5/8" 7/8-14
MB-10-12 0.625 2.860 1.360 1-1/4 5/8" 1-1/16-12
MB-12-10 0.750 2.750 1.250 1-1/4 3/4" 7/8-14
MB-12-12 0.750 2.953 1.360 1-1/4 3/4" 1-1/16-12
MB-12-14 0.750 N/A N/A N/A 3/4" 1-3/16-12
MB-12-16 0.750 3.053 1.460 1-1/2 3/4" 1-5/16-12
MB-16-12 1.000 3.110 1.373 1-1/2 1" 1-1/16-12
MB-16-16 1.000 3.210 1.476 1-1/2 1" 1-5/16-12

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
