MB-10-10-W by Kurt Hydraulics | Male O-Ring Boss | Rigid | for 5/8" Hose ID

MB-10-10-W by Kurt Hydraulics | Male O-Ring Boss | Rigid | for 5/8" Hose ID

Save $2.09 Save $2.09
$18.81
$18.81 - $18.81
$18.81
$16.72
$16.72 - $16.72
$16.72
by Kurt Hydraulics
MB-W - Male Boss O-Ring Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MB-10-10-W Kurt
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 5/8in Male O-Ring Boss
Special Properties: Rigid

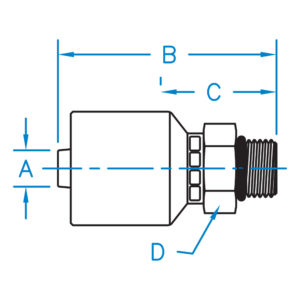

Part Number A B C D Hose ID
(In)		 Thread
MB-06-06-W 0.375 2.120 0.890 3/4 3/8" 9/16-18
MB-06-08-W 0.375 2.170 0.940 7/8 3/8" 3/4-16
MB-06-10-W 0.375 2.456 1.086 1.000 3/8" 7/8-14
MB-08-06-W 0.500 2.301 0.986 11/16 1/2" 9/16-18
MB-08-08-W 0.500 2.350 1.010 7/8 1/2" 3/4-16
MB-08-10-W 0.500 2.481 1.141 1-1/16 1/2" 7/8-14
MB-08-12-W 0.500 2.564 1.224 1-1/4 1/2" 1-1/16-12
MB-10-10-W 0.625 3.311 1.211 1-1/16 5/8" 7/8-14
MB-10-12-W 0.625 3.394 1.294 1-1/4 5/8" 1-1/16-12
MB-12-12-W 0.750 2.050 1.260 1-1/4 3/4" 1-1/16-12
MB-12-16-W 0.750 3.050 1.260 1-1/2 3/4" 1-5/16-12
MB-16-16-W 1.000 3.380 1.270 1-1/2 1.000" 1-5/16-12
MB-16-20-W 1.000 3.570 1.460 1-7/8 1.000" 1-5/8-12
MB-20-20-W 1.250 4.070 1.620 1-7/8 1-1/4" 1-5/8-12


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
