MBX-06-08 by Kurt Hydraulics | Jump Size | Male O-Ring Boss | Swivel | for 3/8" Hose ID

Name: MBX-06-08 by Kurt Hydraulics | Jump Size | Male O-Ring Boss | Swivel | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: MBX-06-08 Kurt
Price: 7.08 USD
Availability: InStock

Save $0.89

$7.97

$7.97 - $7.97

$7.97

$7.08

$7.08 - $7.08

$7.08

by Kurt Hydraulics
MBX - Male Boss O-Ring Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MBX-06-08 Kurt
Series:	MBX Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 1/2in Male O-Ring Boss
Special Properties:	Swivel, Jump Size

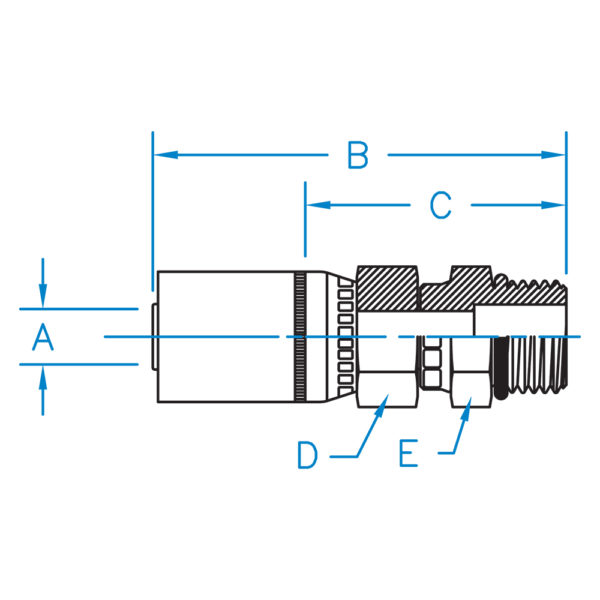

Part Number	A	B	C	D	E	Hose ID (In)	Thread
MBX-04-04	0.250	2.750	1.495	9/16	11/16	1/4"	7/16-20
MBX-04-05	0.250	N/A	N/A	N/A	N/A	1/4"	1/2-20
MBX-04-06	0.250	2.790	1.531	9/16	3/4	1/4"	9/17-18
MBX-06-04	0.375	3.071	1.57	11/16	11/16	3/8"	7/16-20
MBX-06-06	0.375	3.110	1.636	11/16	3/4	3/8"	9/16-18
MBX-06-08	0.375	3.180	1.624	11/16	15/16	3/8"	3/4-16
MBX-08-08	0.500	3.280	2.027	7/8	15/16	1/2"	3/4-16
MBX-08-10	0.500	3.490	1.849	7/8	1.000	1/2"	7/8-14
MBX-12-12	0.750	3.915	2.342	1-1/8	1-1/8	3/4"	1-1/16-12
MBX-16-16	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
