MBX90-06-10-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 5/8" Male O-Ring Boss Swivel Block Style | 90° Elbow | Carbon Steel

MBX90-06-10-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 5/8" Male O-Ring Boss Swivel Block Style | 90° Elbow | Carbon Steel

Save $28.58 Save $28.58
$71.45
$71.45 - $71.45
$71.45
$42.87
$42.87 - $42.87
$42.87

Kurt Hydraulics
MBX - Male Boss O-Ring 90° Swivel Block Style
Specifications for Variant SKU: MBX90-06-10-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb x 5/8in Male O-Ring Boss
Material(s): Carbon Steel
Special Properties: Swivel

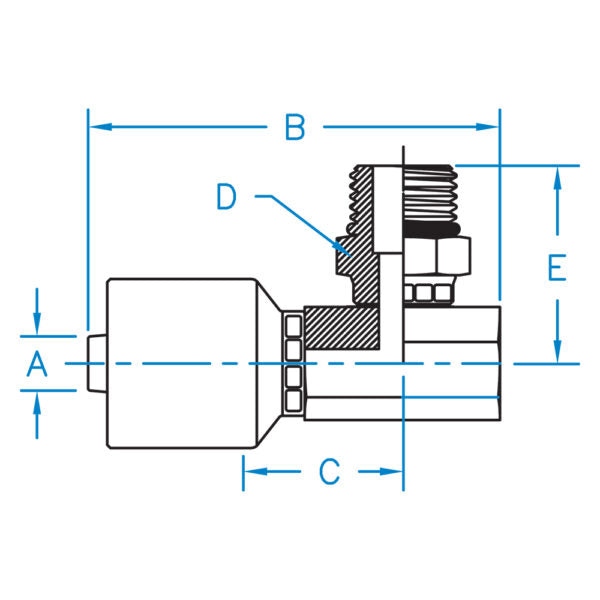

Part Number Hose I.D. (in.) B C D E Thread
MBX90-04-04-K2 1/4" 2.03" 0.56" 11/16" 1.43" 7/16 – 20
MBX90-04-06-K2 1/4" 2.03" 0.56" 3/4" 1.46" 9/16 – 18
MBX90-06-06-K2 3/8" 2.56" 1.19" 3/4" 1.55" 9/16 – 18
MBX90-06-08-K2 3/8" 2.56" 1.19" 15/16" 1.63" 3/4 – 16
MBX90-06-10-K2 3/8" 3.01" 1.11" 1" 1.71" 7/8 – 14
MBX90-08-08-K2 1/2" 2.64" 1.33" 15/16" 1.68" 3/4 – 16
MBX90-08-10-K2 1/2" 2.64" 1.33" 1" 1.74" 7/8 – 14
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
