MBX90-08-08-W by Kurt Hydraulics | Male O-Ring Boss | 90° Elbow | Swivel | Block Style | for 1/2" Hose ID

Save $2.00

$17.99

$17.99 - $17.99

$17.99

$15.99

$15.99 - $15.99

$15.99

by Kurt Hydraulics
MBX90-W - Male Boss O-Ring 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MBX90-08-08-W Kurt
Series:	MBX90 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Hose Barb, 1/2in Male O-Ring Boss
Special Properties:	Swivel

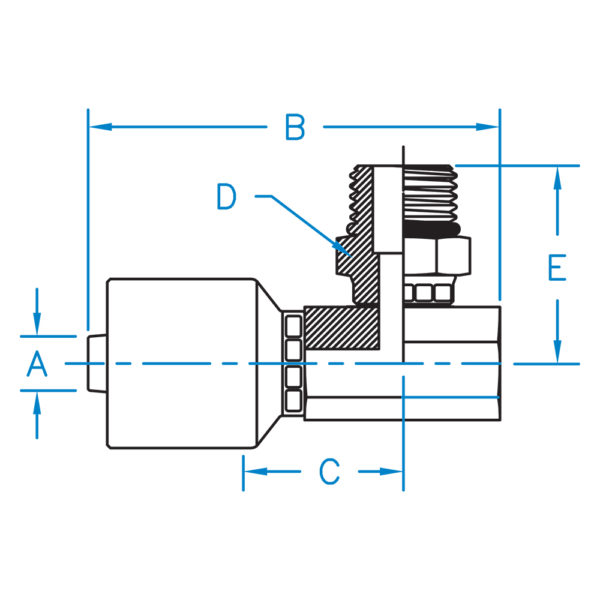

Part Number	A	B	C	D	E	Hose ID (In)	Thread
MBX90-06-06-W	0.375	2.555	1.185	3/4	1.545	3/8"	9/16-18
MBX90-06-08-W	0.375	2.555	1.185	15/16	1.632	3/8"	3/4-16
MBX90-08-08-W	0.500	2.642	1.327	15/16	1.675	1/2"	3/4-16
MBX90-08-10-W	0.500	2.642	1.327	1.000	1.740	1/2"	7/8-14
MBX90-12-12-W	0.750	N/A	N/A	1-1/4	N/A	3/4"	1-1/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
