MBX90-12-12 by Kurt Hydraulics | Male O-Ring Boss | Swivel | 90° Elbow | for 3/4" Hose ID

MBX90-12-12 by Kurt Hydraulics | Male O-Ring Boss | Swivel | 90° Elbow | for 3/4" Hose ID

Save $18.73 Save $18.73
$46.82
$46.82 - $46.82
$46.82
$28.09
$28.09 - $28.09
$28.09

by Kurt Hydraulics
MBX90 - Male Boss O-Ring 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MBX90-12-12 Kurt
Series: Braided Coupling Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 3/4in Male O-Ring Boss
Special Properties: Swivel

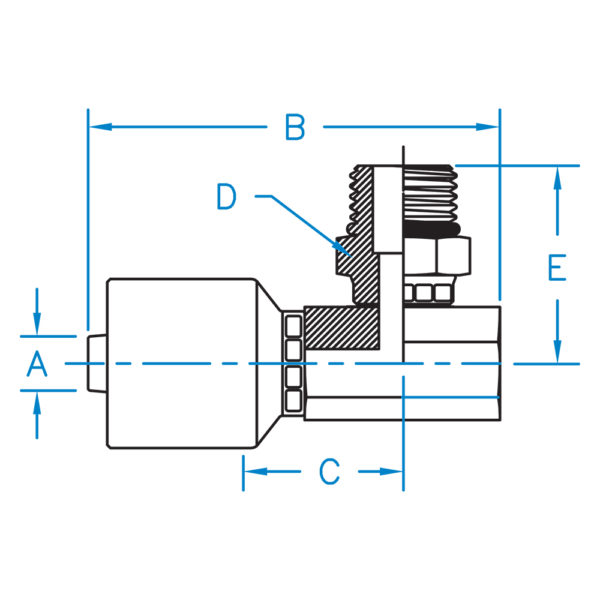

Part Number A B C D E Hose ID
(In)		 Thread
MBX90-04-04 0.250 2.312 0.650 11/16 1.410 1/4" 7/16-20
MBX90-04-06 0.250 2.312 0.650 3/4 1.450 1/4" 9/16-18
MBX90-06-06 0.375 2.770 0.741 3/4 1.543 3/8" 9/16-18
MBX90-06-08 0.375 2.770 0.741 15/16 1.610 3/8" 3/4-16
MBX90-06-10 0.375 2.770 0.741 1.000 1.610 3/8" 7/8-14
MBX90-08-08 0.500 2.910 0.875 15/16 1.680 1/2" 3/4-16
MBX90-08-10 0.500 2.910 0.875 1.000 1.740 1/2" 7/8-14
MBX90-10-10 0.625 N/A N/A N/A N/A 5/8" 7/8-14
MBX90-12-12 0.750 3.630 1.000 1-1/8 2.360 3/4" 1-1/16-12

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
