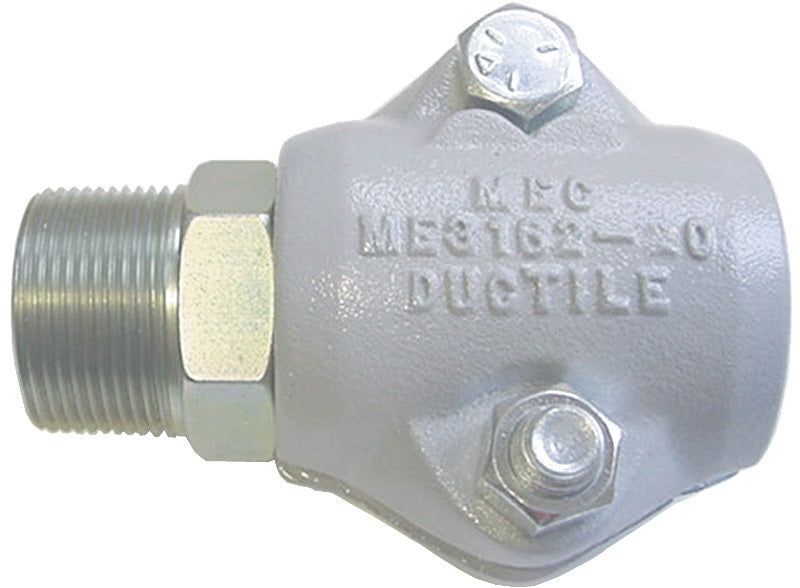

ME3162-20 by Dixon Valve | LP Gas Clamp Style Hose Coupling | 1-1/4" Hose Barb x 1-1/4" Male NPT | Steel Nipple | with 2-Piece Ductile Iron Clamp

ME3162-20 by Dixon Valve | LP Gas Clamp Style Hose Coupling | 1-1/4" Hose Barb x 1-1/4" Male NPT | Steel Nipple | with 2-Piece Ductile Iron Clamp

Save $10.24 Save $10.24
$121.24
$121.24 - $121.24
$121.24
$111.00
$111.00 - $111.00
$111.00

Dixon Valve
LP Gas Clamp Style Hose Coupling

Meets or exceeds the requirements of:
-Compressed Gas Association (CGA)
-National Fire Protection Association (NFPA)
-Canadian Gas Association
-American Society of Mechanical Engineers (ASME)
-Underwriters Laboratories (UL)
Specifications for Variant SKU: ME3162-20 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Male NPT
Material(s): Steel
Features:
  • 32B and 32S sizes offer a female Acme swivel to eliminate the need to add additional weight and bulk to the hose assembly.
Materials:
  • Clamp sections and hose barbs are made of steel and ductile iron.
Part Number Hose Barb Thread Size Material
ME3162-16 1" 1" Male NPT Steel Nipple, 2-piece Ductile Iron Clamp
ME3162-20 1-1/4" 1-1/4" Male NPT Steel Nipple, 2-piece Ductile Iron Clamp
ME3162-24 1-1/4" 1" Male NPT Steel Nipple, 2-piece Ductile Iron Clamp
ME3162-32 2" 2" Male NPT Steel Nipple, 2-piece Ductile Iron Clamp
ME3162-32B 2" 3-1/4" Female Acme Steel Nipple, Brass Nut, 2-piece Ductile Iron Clamp
ME3162-32S 2" 3-1/4" Female Acme Steel Nipple, Steel Nut, 2-piece Ductile Iron Clamp
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
