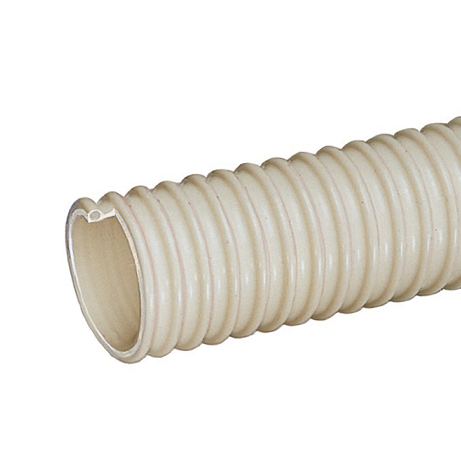

MH100X100 Kuriyama Tigerflex MH Series Marine Hose - PVC Suction Hose - 1" - 100ft

MH100X100 Tigerflex by Kuriyama | MH Series | Marine Hose | Suction Hose | 1" ID | PVC | 100ft Length

Save $53.28 Save $53.28
$186.48
$186.48 - $186.48
$186.48
$133.20
$133.20 - $133.20
$133.20

Kuriyama Tigerflex MH™ Series Marine PVC Suction Hose

Package Quantity: 100 FT

Specifications for Variant SKU: MH100X100 Kuriyama | 100 |
Brand: Tigerflex
Series: MH Series
Hose Color(s): White/Off-White
Internal Diameter: 1in
Outer Diameter: 1.22in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Drain lines, Marine bilge discharge, Marine plumbing, Recreational vehicle (RV) plumbing SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Odor-resistant Tube - Special additives help eliminate the build-up of unwanted odors.
  • Convoluted Outer Cover - Provides increased hose f1exibility.
  • Easy Installation - Ideal for working in confi ned areas. Permits installers to make smooth, tight turns. Requires fewer fittings than rigid pipe.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
MH100X100 1" 25.4mm 1.22" 31.0mm 45 PSI 15 PSI Full 24 in.Hg 1" 100ft 0.15 lbs
MH125X100 1-1/4" 32.0mm 1.49" 38.0mm 40 PSI 12 PSI Full 24 in .Hg 1.5" 100ft 0.20 lbs
MH150X100 1-1/2" 38.1mm 1.77" 45.0mm 40 PSI 12 PSI Full 24 in .Hg 2" 100ft 0.25 lbs
MH200X100 2" 50.8mm 2.32" 59.0mm 35 PSI 10 PSI 26 in .Hg 20 in .Hg 2.5" 100ft 0.31 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
