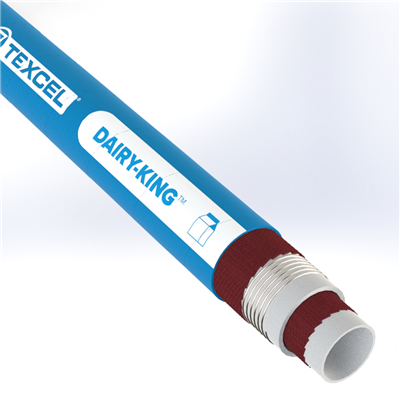

MILK-4.0 by Texcel | DAIRY-KING™ Series | Milk Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Blue

MILK-4.0 by Texcel | DAIRY-KING™ Series | Milk Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Blue

$51.78 - $4,315.50
$51.78
$46.03
$46.03 - $3,836.00
$46.03

Texcel
DAIRY-KING™ Series | Milk Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: MILK-4.0-100 Texcel | 100 |
Series: DAIRY-KING™ Series
Hose Color(s): Blue
Internal Diameter: 4in
Outer Diameter: 4.56in
Tubing Construction: Nitrile
Cover Construction: EPDM
Technical Data:
Description: DAIRY-KING™ milk hose is specifically designed for the suction and delivery of milk and other fatty foods. The DAIRY-KING™ hose has a white, smooth, NBR rubber tube to ensure product quality, is odorless and does not alter taste. Its blue, smooth, cloth impression EPDM rubber cover offers abrasion-, ozoneand weather-resistance. This hose can be sterilized with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(f) for fatty foods, BfR, ADI free, D.M. 21/03/73, EC 1935 / 2004. Hose conform to 3A standards. Tube: White, NBR
Cover: Blue, EPDM Reinforcement: High strength synthetic plies with steel helix
Safety Factor: 3:1 Temperature: -40°F to +248°F
Branding: TEXCEL® DAIRY-KING™ MILK HOSE 150 PSI (10 BAR) W.P TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE Safety Note: It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features: FDA, USDA and 3A compliant
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft.
MILK-.75 3/4" 1-9/64" 150 psi 29 2.5" 0.45 lbs
MILK-1.0 1" 1-24/64" 150 psi 29 3.5" 0.54 lbs
MILK-1.25 1-1/4" 1-47/64" 150 psi 29 4.25" 0.83 lbs
MILK-1.5 1-1/2" 1-62/64" 150 psi 29 5" 0.93 lbs
MILK-2.0 2" 2-32/64" 150 psi 29 7.5" 1.26 lbs
MILK-3.0 3" 3-32/64" 150 psi 29 11" 2.02 lbs
MILK-4.0 4" 4-35/64" 150 psi 29 13" 3.09 lbs
