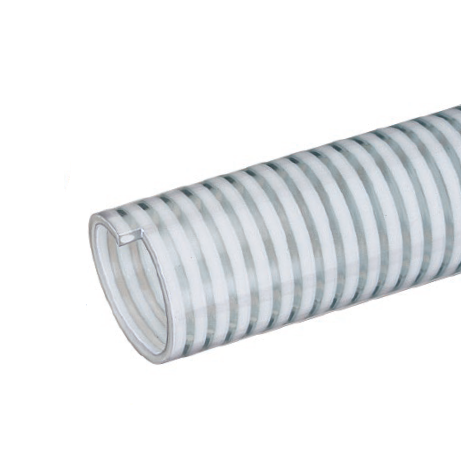

MILK-LT200X100 Kuriyama Tigerflex MILK LT Series Low Temperature Food Grade PVC Liquid Suction Hose - 2" - 100ft

MILK-LT200X100 Tigerflex by Kuriyama | MILK LT Series | Low Temperature Food Grade Liquid Suction Hose | 2" ID | PVC | 100ft Length

Save $198.24

$693.84

$693.84 - $693.84

$693.84

$495.60

$495.60 - $495.60

$495.60

Kuriyama Tigerflex MILK-LT™ Series Low Temperature Food Grade PVC Liquid Suction Hose

Package Quantity: 100 FT

Specifications for Variant SKU: MILK-LT200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	MILK LT Series
Hose Color(s):	White/Off-White & Clear/Semi-Clear
Internal Diameter:	2in
Outer Diameter:	2.33in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Requirements, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Food grade liquids such as potable water, beer,wine and juice Ice transfer, Milk and dairy product transfer, Water suction - standard duty	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix.	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Precision Controlled ID and OD Dimensions - Facilitates insertion of sanitary fittings. Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding. "Cold-Flex" Materials (MILK-LT only) - Hose remains flexible in severe sub-zero temperatures.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
MILK-LT150X1000	1-1/2"	38.1mm	1.79"	45.5mm	75 PSI	50 PSI	Full	26in. Hg	4"	100ft	0.45 lbs
MILK-LT200X100	2"	50.8mm	2.33"	59.2mm	75 PSI	50 PSI	28in. Hg	25in. Hg	5"	100ft	0.65 lbs
MILK-LT250X100	2-1/2"	63.5mm	2.87"	73.0mm	55 PSI	40 PSI	28in. Hg	24in. Hg	8"	100ft	0.84 lbs
MILK-LT300X100	3"	76.2mm	3.42"	86.9mm	55 PSI	40 PSI	28in. Hg	24in. Hg	11"	100ft	1.20 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
