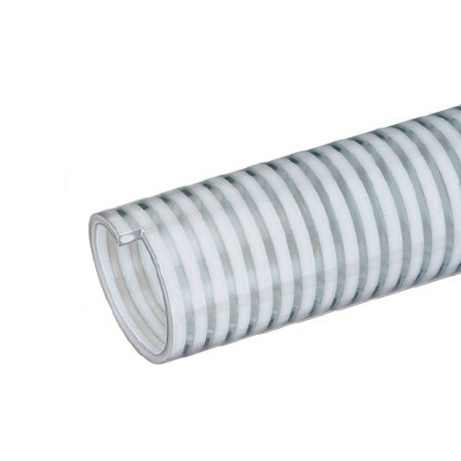

MILK300X100 Kuriyama Tigerflex MILK Series Food Grade PVC Liquid Suction Hose - 3" - 100ft

MILK300X100 Tigerflex by Kuriyama | MILK Series | Food Grade Liquid Suction Hose | 3" ID | PVC | 100ft Length

Save $90.67 Save $90.67
$906.67
$906.67 - $906.67
$906.67
$816.00
$816.00 - $816.00
$816.00

Kuriyama Tigerflex MILK™ Series Food Grade PVC Liquid Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: MILK300X100 Kuriyama | 100 |
Brand: Tigerflex
Series: MILK Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 3in
Outer Diameter: 3.42in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Requirements, RoHS Compliant

SPECIFICATIONS

Application: Food grade liquids such as potable water, beer,wine and juice Ice transfer, Milk and dairy product transfer, Water suction - standard duty SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Other Features:
  • Precision Controlled ID and OD Dimensions - Facilitates insertion of sanitary fittings.
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • "Cold-Flex" Materials (MILK-LT only) - Hose remains flexible in severe sub-zero temperatures.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
MILK150X100 1-1/2" 38.1mm 1.79" 45.5mm 75 PSI 50 PSI Full 26in. Hg 4" 100ft 0.45 lbs
MILK200X100 2" 50.8mm 2.33" 59.2mm 75 PSI 50 PSI 28in. Hg 25in. Hg 6" 100ft 0.63 lbs
MILK250X100 2-1/2" 63.5mm 2.87" 73.0mm 55 PSI 40 PSI 28in. Hg 24in. Hg 10" 100ft 0.81 lbs
MILK300X100 3" 76.2mm 3.42" 86.9mm 55 PSI 40 PSI 28in. Hg 24in. Hg 11" 100ft 1.18 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
