MIX90-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Male SAE 45° Inverted Flare | 90° Elbow | Carbon Steel

MIX90-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Male SAE 45° Inverted Flare | 90° Elbow | Carbon Steel

Save $7.68 Save $7.68
$69.12
$69.12 - $69.12
$69.12
$61.44
$61.44 - $61.44
$61.44

Kurt Hydraulics
MIX90 - 45° SAE Male Inverted Flare 90° Bent Tube Swivel
Specifications for Variant SKU: MIX90-08-10-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb x 5/8in Male Inverted Flare
Material(s): Carbon Steel

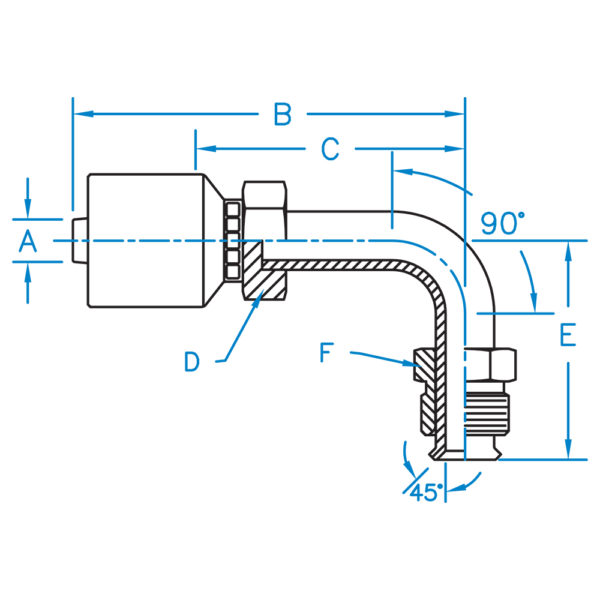

Part Number Hose I.D. (in.) B C D E F Thread
MIX90-04-03-K2 1/4" 2.74" 1.68" 5/8" 1.38" 3/8" 3/8 – 24
MIX90-04-04-K2 1/4" 2.09" 1.03" 5/8" 1.47" 7/16" 7/16 – 24
MIX90-04-05-K2 1/4" 2.26" 1.20" 5/8" 1.66" 1/2" 1/2 – 20
MIX90-04-06-K2 1/4" 3.62" 2.54" 5/8" 1.69" 5/8" 5/8 – 18
MIX90-06-04-K2 3/8" 2.42" 1.05" 11/16" 1.47" 7/16" 7/16 – 24
MIX90-06-05-K2 3/8" 2.59" 1.22" 3/4" 1.66" 1/2" 1/2 – 20
MIX90-06-06-K2 3/8" 3.84" 2.61" 3/4" 1.69" 5/8" 5/8 – 18
MIX90-06-07-K2 3/8" 3.98" 2.61" 11/16" 1.69" 11/16" 11/16 – 18
MIX90-06-08-K2 3/8" 3.47" 2.10" 3/4" 1.88" 3/4" 3/4 – 18
MIX90-08-08-K2 1/2" 3.49" 2.15" 7/8" 1.88" 3/4" 3/4 – 18
MIX90-08-10-K2 1/2" 2.77" 1.43" 7/8" 1.63" 7/8" 7/8 – 18
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
