MJ-06-05-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 5/16" Male 37° JIC | Carbon Steel

MJ-06-05-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 5/16" Male 37° JIC | Carbon Steel

Save $3.23 Save $3.23
$8.07
$8.07 - $8.07
$8.07
$4.84
$4.84 - $4.84
$4.84

Kurt Hydraulics
37° JIC Male Rigid
Specifications for Variant SKU: MJ-06-05-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 5/16in Male JIC
Material(s): Carbon Steel

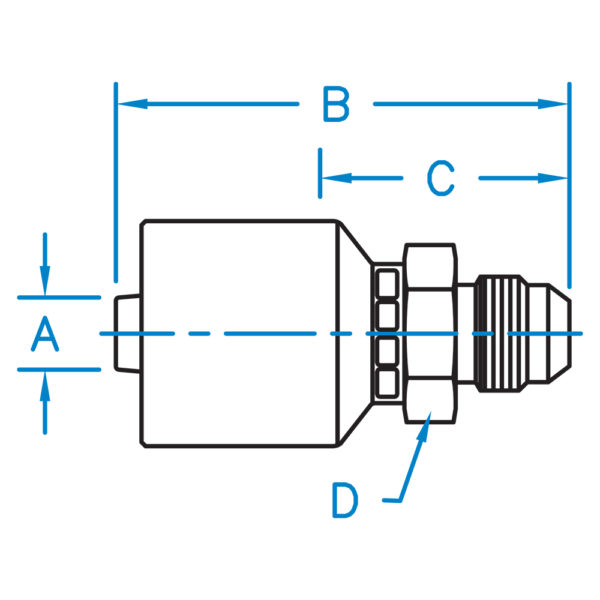

Part Number Hose I.D. (in.) B C D Thread
MJ-04-04-K2 1/4" 2.02" 0.94" 9/16" 7/16"-20
MJ-04-05-K2 1/4" 2.03" 0.92" 9/16" 1/2"-20
MJ-04-06-K2 1/4" 2.03" 0.95" 9/16" 9/16"-18
MJ-06-05-K2 3/8" 2.36" 0.99" 11/16" 1/2"-20
MJ-06-06-K2 3/8" 2.12" 0.99" 3/4" 9/16"-18
MJ-06-08-K2 3/8" 2.38" 1.15" 3/4" 3/4"-16
MJ-06-10-K2 3/8" 2.72" 1.35" 1" 7/8"-14
MJ-08-06-K2 1/2" 2.39" 1.05" 11/16" 9/16"-18
MJ-08-08-K2 1/2" 2.57" 1.23" 7/8" 3/4"-16
MJ-08-10-K2 1/2" 2.72" 1.38" 7/8" 7/8"-14
MJ-08-12-K2 1/2" 2.85" 1.51" 1-1/8" 1-1/16"-12
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
