MJ-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Male JIC | for 1-1/4" Hose ID

Name: MJ-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Male JIC | for 1-1/4" Hose ID
Brand: Kurt Hydraulics
SKU: MJ-20-20-JJ Kurt
Price: 49.16 USD
Availability: InStock

Save $6.15

$55.31

$55.31 - $55.31

$55.31

$49.16

$49.16 - $49.16

$49.16

by Kurt Hydraulics
MP-JJ - 37 deg. JIC Male Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MJ-20-20-JJ Kurt
Series:	MJ Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Hose Barb, 1-1/4in Male JIC

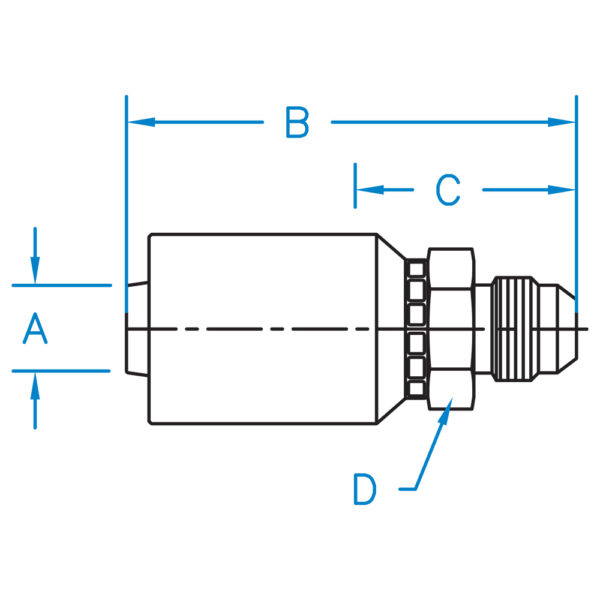

Part Number	A	B	C	D	Hose ID (In)	Thread
MJ-20-20-JJ	1.250	4.813	2.213	2.000	1-1/4"	1-5/8 - 12
MJ-24-24-JJ	1.500	5.060	2.530	2-1/8	1-1/2"	1-7/8 - 12
MJ-32-32-JJ	2.000	6.720	3.130	2-5/8	2.000"	2-1/2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
