MMSP-12-22 by Kurt Hydraulics | Metric Standpipes | for 3/4" Hose ID

MMSP-12-22 by Kurt Hydraulics | Metric Standpipes | for 3/4" Hose ID

Save $10.45 Save $10.45
$26.13
$26.13 - $26.13
$26.13
$15.68
$15.68 - $15.68
$15.68

by Kurt Hydraulics
MMSP - Metric O.D. Stand Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MMSP-12-22 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight

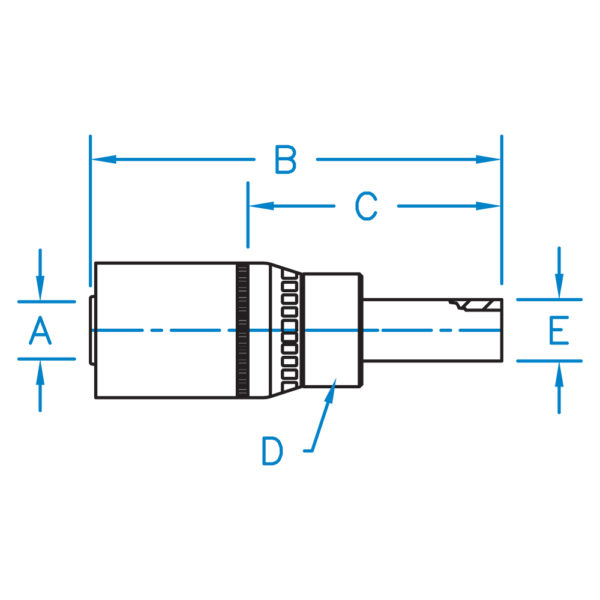

Part Number A B C D E Hose ID
(In)		 Thread
MMSP-04-06 0.250 3.010 1.660 5/8 6MM 1/4" N/A
MMSP-04-08 0.250 3.090 1.720 5/8 8MM 1/4" N/A
MMSP-04-10 0.250 3.160 1.810 5/8 10MM 1/4" N/A
MMSP-05-10 0.312 3.200 1.830 5/8 10MM 5/16" N/A
MMSP-05-12 0.312 3.230 1.880 5/8 12MM 5/16" N/A
MMSP-06-10 0.375 3.180 1.810 3/4 10MM 3/8" N/A
MMSP-06-12 0.375 3.220 1.800 3/4 12MM 3/8" N/A
MMSP-06-14 0.375 3.300 1.940 7/8 14MM 3/8" N/A
MMSP-08-15 0.500 3.330 1.970 7/8 15MM 1/2" N/A
MMSP-08-16 0.500 3.530 2.160 7/8 16MM 1/2" N/A
MMSP-08-18 0.500 3.330 1.970 1.000 18MM 1/2" N/A
MMSP-10-18 0.625 3.340 1.970 1-1/8 18MM 5/8" N/A
MMSP-10-20 0.625 3.620 2.220 1-1/8 20MM 5/8" N/A
MMSP-12-20 0.750 3.750 2.120 1-1/8 20MM 3/4" N/A
MMSP-12-22 0.750 3.400 1.880 1-1/4 22MM 3/4" N/A
MMSP-12-25 0.750 3.790 2.220 1-3/8 25MM 3/4" N/A
MMSP-16-25 1.000 4.060 2.440 1-3/8 25MM 1.000" N/A
MMSP-16-28 1.000 3.720 2.090 1-3/8 28MM 1.000" N/A
MMSP-16-30 1.000 4.150 2.530 1-1/2 30MM 1.000" N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
