MP-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Male NPTF | for 3/4" Hose ID

Name: MP-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Male NPTF | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: MP-12-12-WHP Kurt
Price: 16.68 USD
Availability: InStock

Save $2.09

$18.77

$18.77 - $18.77

$18.77

$16.68

$16.68 - $16.68

$16.68

by Kurt Hydraulics
MP-WHP - Male Pipe NPTF Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MP-12-12-WHP Kurt
Series:	MP Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Male NPTF

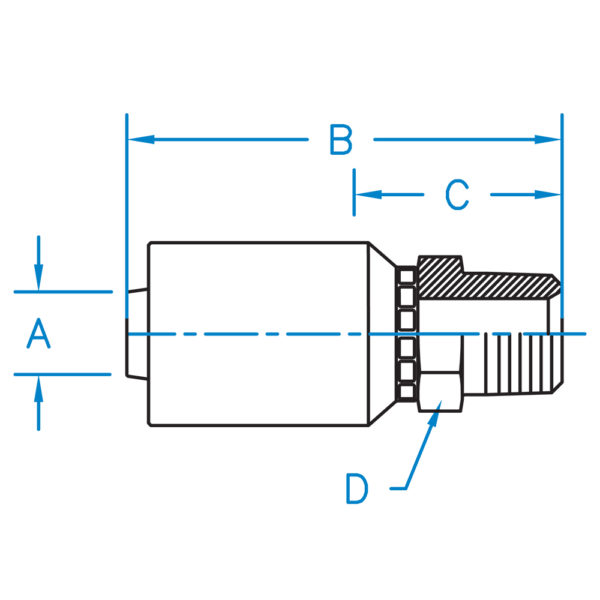

Part Number	A	B	C	D	Hose ID (In)	Thread
MP-12-12-WHP	0.750	3.860	1.430	1-1/8	3/4"	3/4-14
MP-16-16-WHP	1.000	4.235	1.705	1-3/8	1.000"	1-11-1/2
MP-16-16-WHP-API	1.000	5.380	2.850	1-3/8	1.000"	1-11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
