MPX-08-08-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 1/2" Male NPTF Swivel | Carbon Steel

MPX-08-08-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 1/2" Male NPTF Swivel | Carbon Steel

Save $4.18 Save $4.18
$10.45
$10.45 - $10.45
$10.45
$6.27
$6.27 - $6.27
$6.27

Kurt Hydraulics
MPX - NPTF Male Pipe Swivel
Specifications for Variant SKU: MPX-08-08-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 1/2in Male NPTF
Material(s): Carbon Steel
Special Properties: Swivel

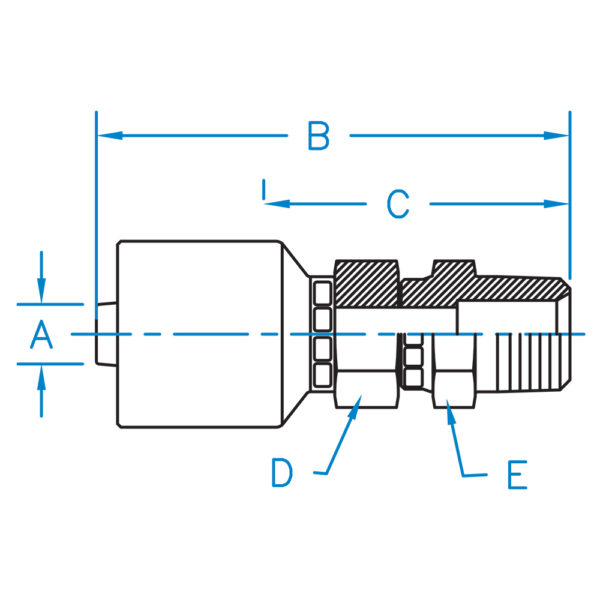

Part Number Hose I.D. (in.) B C D E Thread
MPX-04-02-K2 1/4" 2.32" 1.26" 9/16" 1/2" 1/8"-27
MPX-04-04-K2 1/4" 2.60" 1.54" 9/16" 11/16" 1/4"-18
MPX-04-06-K2 1/4" 2.60" 1.54" 9/16" 3/4" 3/8"-18
MPX-06-04-K2 3/8" 2.99" 1.62" 11/16" 11/16" 1/4"-18
MPX-06-06-K2 3/8" 2.99" 1.62" 11/16" 3/4" 3/8"-18
MPX-06-08-K2 3/8" 3.24" 1.87" 3/4" 15/16" 1/2"-14
MPX-08-06-K2 1/2" 3.02" 1.68" 11/16" 3/4" 3/8"-18
MPX-08-08-K2 1/2" 3.27" 1.93" 11/16" 7/8" 1/2"-14
MPX-08-12-K2 1/2" 3.33" 1.99" 1" 1-1/8" 3/4"-14
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
