MPX90-04-02-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/8" Male Pipe Swivel Block Style | 90° Elbow | Carbon Steel

Name: MPX90-04-02-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/8" Male Pipe Swivel Block Style | 90° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: MPX90-04-02-K2 Kurt
Price: 79.93 USD
Availability: InStock

Save $53.29

$133.22

$133.22 - $133.22

$133.22

$79.93

$79.93 - $79.93

$79.93

Kurt Hydraulics
MPX90 - Male Pipe 90° Swivel Block Style

Specifications for Variant SKU: MPX90-04-02-K2 Kurt
Series:	K2 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Hose Barb x 1/8in Male NPTF
Material(s):	Carbon Steel
Special Properties:	Swivel

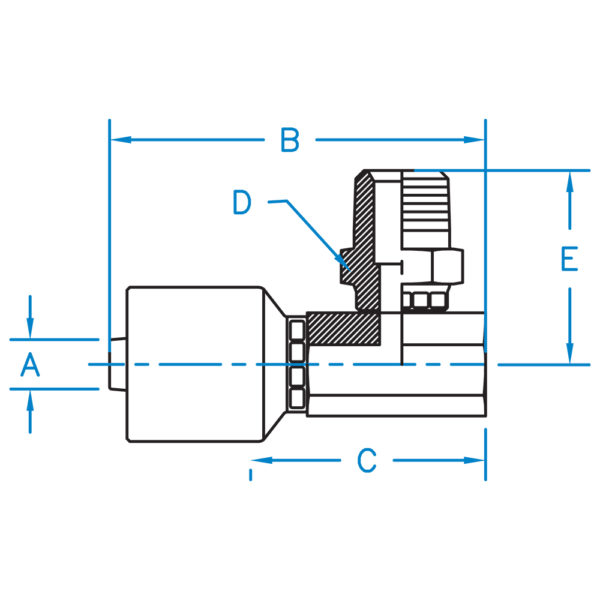

Part Number	Hose I.D. (in.)	B	C	D	E	Thread
MPX90-04-02-K2	1/4"	2.31"	0.65"	1/2"	1.30"	1/8 – 27
MPX90-04-04-K2	1/4"	2.03"	0.97"	11/16"	1.54"	1/4 – 18
MPX90-04-06-K2	1/4"	2.03"	0.56"	3/4"	1.55"	3/8 – 18
MPX90-06-04-K2	3/8"	3.01"	1.11"	11/16"	1.64"	1/4 – 18
MPX90-06-06-K2	3/8"	2.56"	1.19"	3/4"	1.72"	3/8 – 18
MPX90-06-08-K2	3/8"	2.56"	0.66"	7/8"	1.85"	1/2 – 14
MPX90-08-08-K2	1/2"	2.64"	1.33"	15/16"	1.92"	1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
