MPX90-06-06-W by Kurt Hydraulics | Male Pipe 90 Degree | Swivel Block Style | for 3/8" Hose ID

Name: MPX90-06-06-W by Kurt Hydraulics | Male Pipe 90 Degree | Swivel Block Style | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: MPX90-06-06-W Kurt
Price: 13.79 USD
Availability: InStock

Save $9.19

$22.98

$22.98 - $22.98

$22.98

$13.79

$13.79 - $13.79

$13.79

by Kurt Hydraulics
MPX90-W - Male Pipe 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: MPX90-06-06-W Kurt
Series:	W Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Hose Barb, 3/8in Male NPT
Special Properties:	Swivel

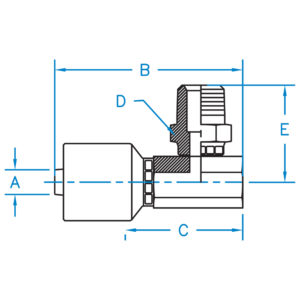

Part Number	A	B	C	D	E	Hose ID (In)	Thread
MPX90-06-06-W	0.375	2.555	1.185	3/4	1.720	3/8"	3/8-18
MPX90-06-08-W	0.375	N/A	N/A	N/A	N/A	3/8"	1/2-14
MPX90-08-08-W	0.500	2.642	1.327	15/16	1.924	1/2"	1/2-14
MPX90-12-12-W	0.750	N/A	N/A	N/A	N/A	3/4"	3/4-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
